Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE,ISO,SGS |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 9000 per unit |
| Packaging Details: | Standard export wooden case with film arround |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 units per year |
| Condition: | New | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Certification: | ISO,CE | Usage: | Pack The Product With Shrinking Film |
| Packing Speed: | 30-40packs/min | Packing Material: | PVC POF PP PE |
| Type: | Wrapping Machine | Application: | Food,Beverage,Commodity,Chemical,Medical |
| Warranty: | 2 Year | Dimension(l*w*h): | (L)2400x(W)1200x(H)1800mm |
| Highlight: | IP54 automatic case packer machine,SGS automatic case packer machine,IEC529 horizontal case packer |
||

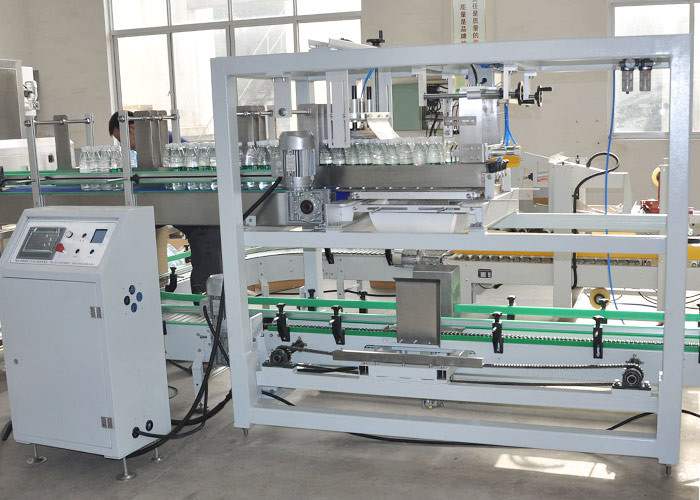

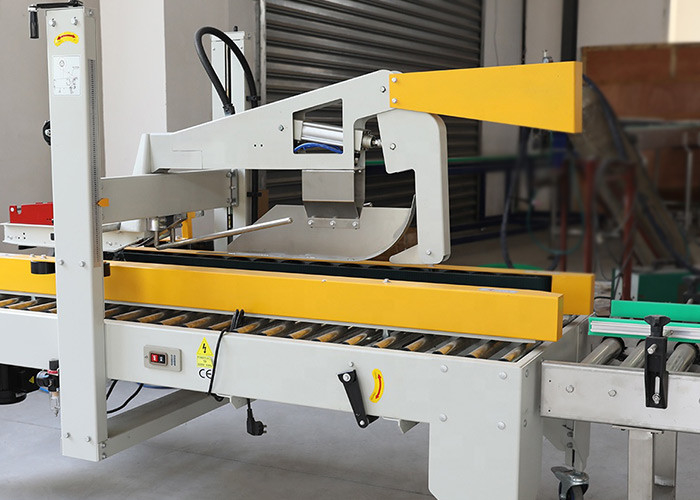

Automatic drop and grape type case packer for cans or bottles with tape

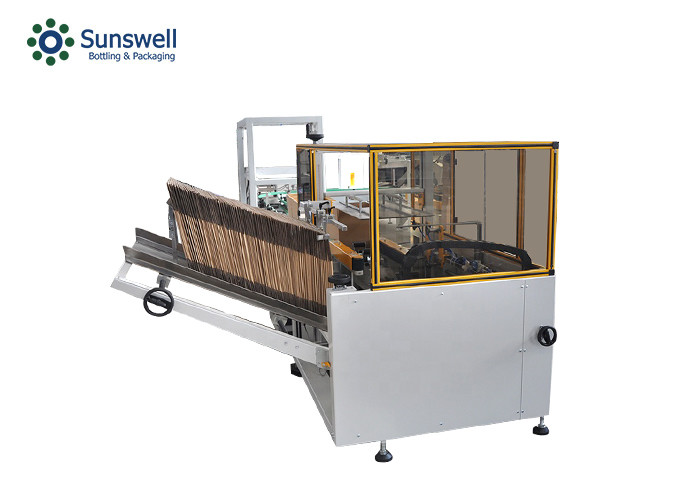

Automatic Case Packer / Case Erector / Carton box Packing machine with factory priceMachine description
1) voltage:380V(± 10%max)50Hz 3PH+PE.
2) For non-380V voltages, can provide an auto transfer.
3) Control voltage: 24V DC ,Schneider low voltage control system
4) According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
5) Insulating refractory cable (paint color according to the DESINA standard)
6) Total switch: domestic brands
7) Panel buttonØ30mm:Schneider
8) proximity switch: South Korea
9) With the joint of the photoelectric tube IP67 diameter18 D
10) Relay connector conforming to Din50-022-35 standard
11) Rapid stand joints conforms to the Din50-022-35 standard
12) Contactor relay with the French Schneider TE/ABB
13) frequency converter is Taiwan Teco
14) main controller: Germany Siemens
15) Asynchronous motor: Domestic
16) Other electric driving device in accordance with the IEC529 standard is not less than IP54
17) Gear motor; China
18) Bearing:TR
19) Chain: polymer plastics
20) Electronic valve in accordance with ISO 505599/1/0 standard
21) Cylinder and its accessories:AIRTAC or SMC
22) The production line to set multiple fault protection and alarm and fault alarm device. All the fault alarm details are on
the touch screen to highlight, prompted the need to solve the content and the main measures. The main action mechanism
is provided with an electronic detection, automatic fault correction system is provided with a mechanical motion system,
also can use manual reset button, the system automatically detecting and correcting.
| oversize(L/W/H) | 4500/800/2050(mm) |
| total installed capacity | 3KW |
| Main Power | AC3-380V/50HZ+G+E |
| optimal working temperature | -10℃~40℃ |
| Auxiliary power supply | 24VDC |
| pressure of compressed air | 0.4~0.6Mpa |
| Consumption of compressed air | 1500L/Min |
| weight | 1000KG |
