Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | TGX-900 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Highlight: | bottled water filling machine,automated filling machine |
||
|---|---|---|---|

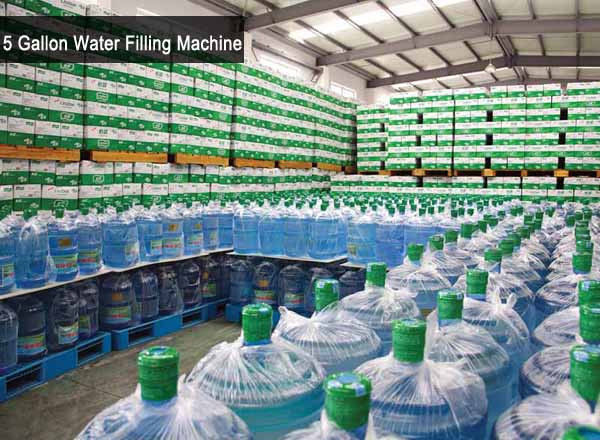

Stainless Steel 5 Gallon Water Filling Machine , Automatic 2400BPH Capping Monobloc Machine
CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles
Technical features of 5 gallon water filling machine
Equipment structure of 5 gallon water filling machine
Specifications:
|
Model |
TGX-900 |
|
|
Product capacity |
900 barrel/hour |
|
|
Filling head |
8 |
|
|
Equipment size |
4680×2000×2200mm (rinser/filler) 1000×1200×2200mm (capper) |
|
|
Power supply |
Main machine (KW) |
13 |
|
Compressed air |
Air pressure |
0.5Mpa |
|
|
Gas consumption |
1.5m3/min |
|
Washing working position |
circulating water (2 positions) pure water (2 positions) |
Drip working position: 1 pc |
|
|
consumption |
4T/hr |
