Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
| Material: | SUS 304/316L | ||
| Highlight: | 1200BPH Capacity Bottle Filling Machine,900BPH 5 Gallon Water Filling Machine,600BPH PET Bottle Filling Machine |
||

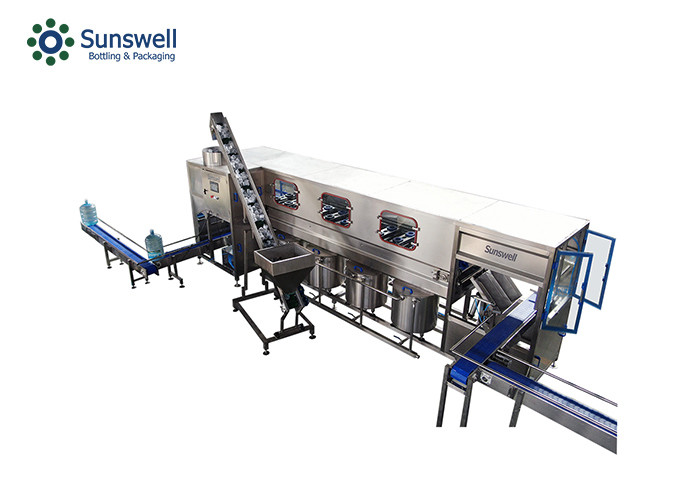

Full Automatic Water 5 Gallon Bottle Filling Machine with capacity 100 300 450 600 BPH 900BPH 1200BPH

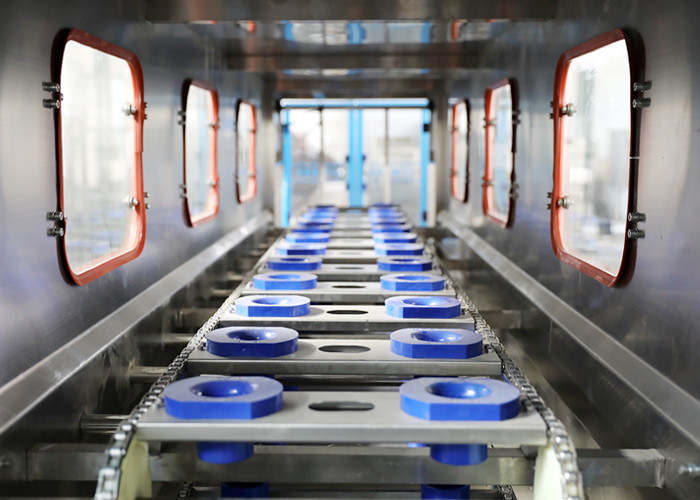

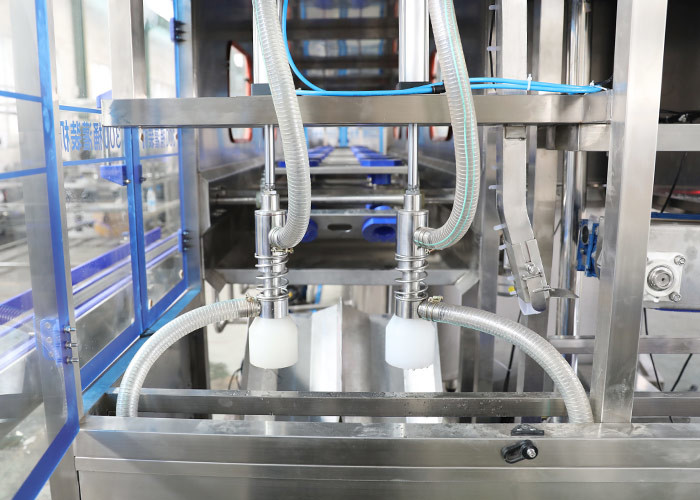

This filling line specially for 3-5gallons barreled drink water,with type QGF-150, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .
CE/ISO new design 5 gallon bottled water machines/filling machine
| Main technical data | |||||||
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
