Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
| Material: | SUS 304/316L | ||
| Highlight: | CE PET Bottled Water Filling Machine,SUS304 5 Gallon Filing Capping Machine |
||
Water Filling Machine Automatic PET Bottled 5 Gallon Filing Capping Machine

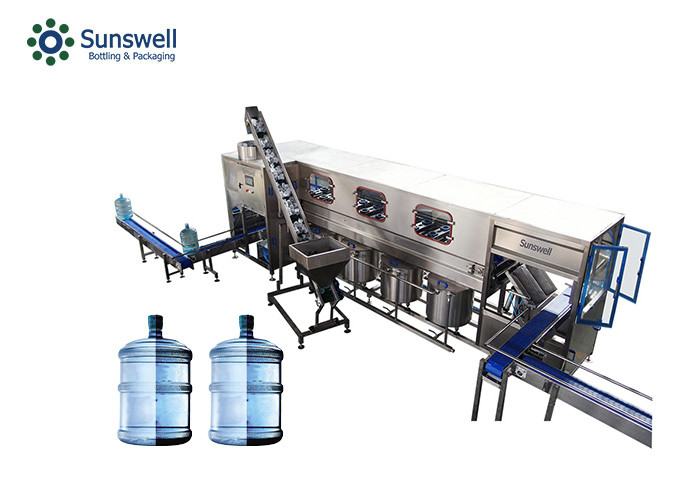

3-5 Gallons Barreled Water Production Line
(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel
(2) The machine consists of washing, filling and sealing in one
(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of
washing sterilization.The disinfectant is recyclable
(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation
device to ensure the sanitation of cap
(5) Washing, disinfection, filling, gland, counting and discharging is automatic
(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure,
small occupation of land and high automation
CE/ISO new design 5 gallon bottled water machines/filling machine
| Main technical data | |||||||
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
