Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
| Material: | SUS 304/316L | ||
| Highlight: | Mineral Water Bottle Washer,20L Bottle Water Production Line,Stainless Steel 5Gallon Water Filling Machine |
||

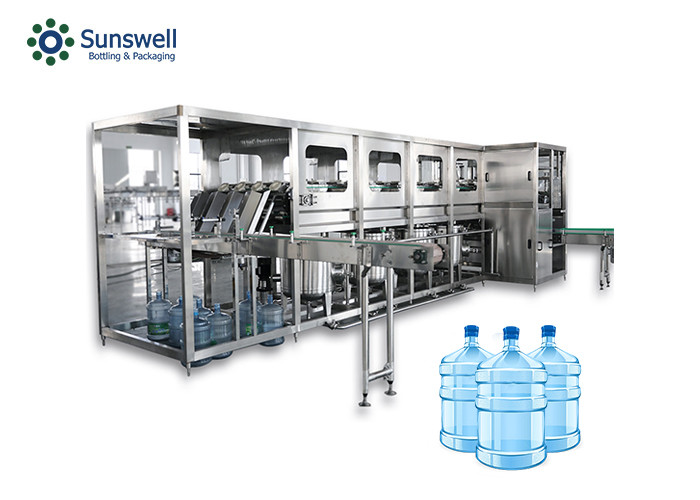

Mineral Water Bottle Washer 5 gallon/20L bottle water production line machineries
Filling process

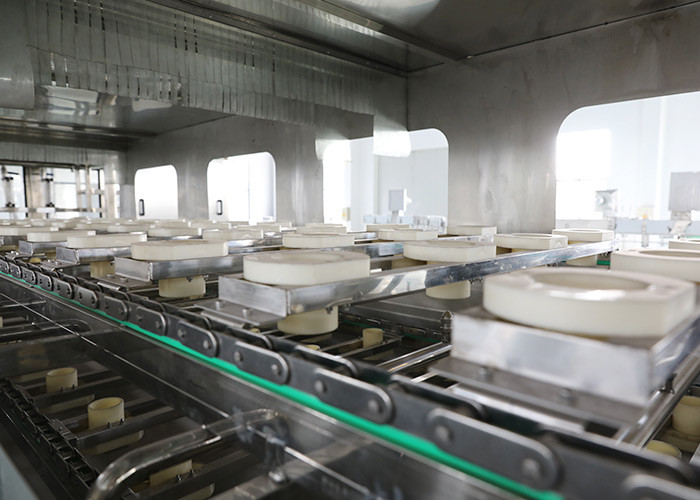

Barrels move 180 degree along with conveying chain wheel and to turnover frame, and then barrels are pushed into filling
machine by barrel pushing cylinder and located on conveyor belt and waiting for filling.
we have rich experience of more than 10 years in foodstuff & beverage machinery field, we can help customers design,
manufacture, install and operate the turn-key project for mineral water, pure water, carbonated drink, fruit juice, milk, yogurt,
cheese and ice cream production lines etc.
CE/ISO new design 5 gallon bottled water machines/filling machine
| Main technical data | |||||||
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
