Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | GF 60-6 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Material: | S/s 304 |
|---|---|---|---|
| Sanitary Type: | Sanitary Design | Components: | Top Branded Components |
| Filling Sacle: | 250ml To 1000ml | Certification: | CE, ISO |
| Warranty: | Two Years | Local Service Area: | Costa Rica |
| Highlight: | Automatic Beer Can Filling capping Machine,High precision Beer Can Filling capping Machine,Alcohol Filling Capping Machine |
||

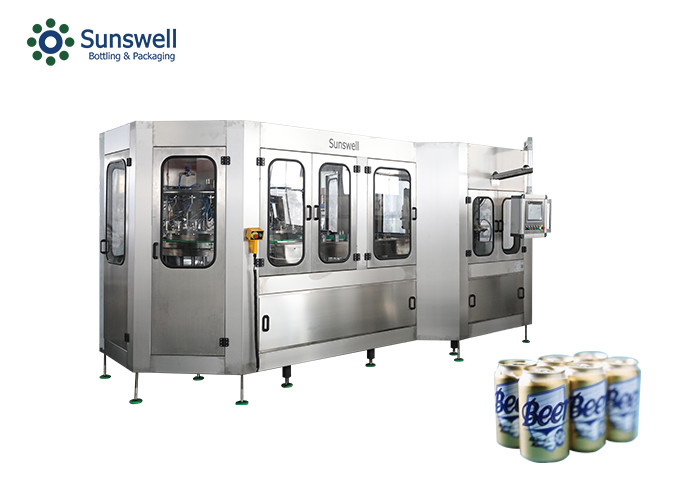

Automatic Beer Can Filling Machine Alcohol Filling Capping Machine
This GF60-6 fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.
Description:
It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc.
The line is composed of separate automatic rotary Filling machine and can seaming machine.
This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated Water, soda water, etc, It is an ideal machine for small-and medium-sized beverage factories.
Applications:
Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can
Competitive Advantage:
Features
Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
Cycling tank design with precision polishing inside;
High precision and large flow rate filling valves to meet productive requirement;
Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility.
Working Procedure

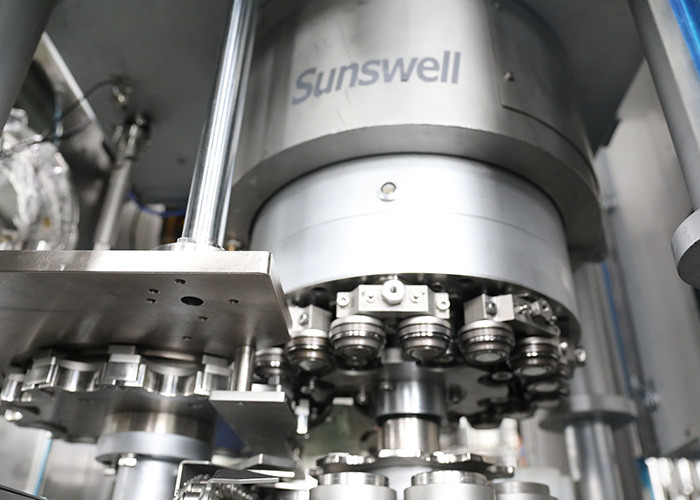

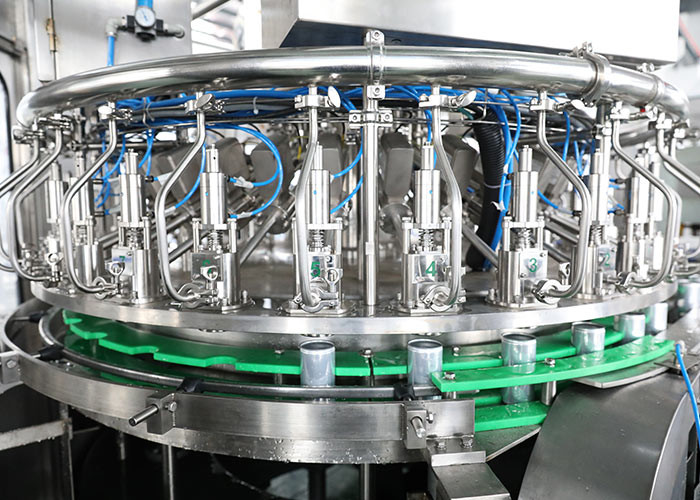

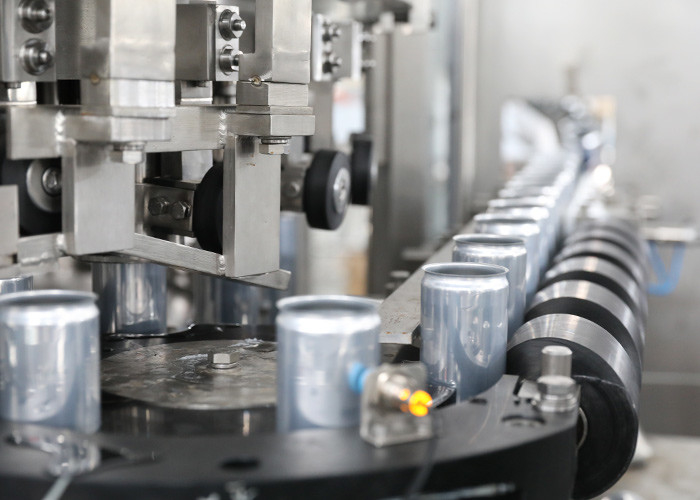

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.
Equipment structure
Main Specification
Aluminum can filling line Filler Seamer Product list
