Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | GF 60-6 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Material: | S/s 304 |
|---|---|---|---|
| Sanitary Type: | Sanitary Design | Components: | Top Branded Components |
| Filling Sacle: | 250ml To 1000ml | Certification: | CE, ISO |
| Warranty: | Two Years | Local Service Area: | Costa Rica |
| Highlight: | Soda Beverage Filling Production Line,Aluminum Can Soda Filling Machine,Carbonated Bottling Machine |
||

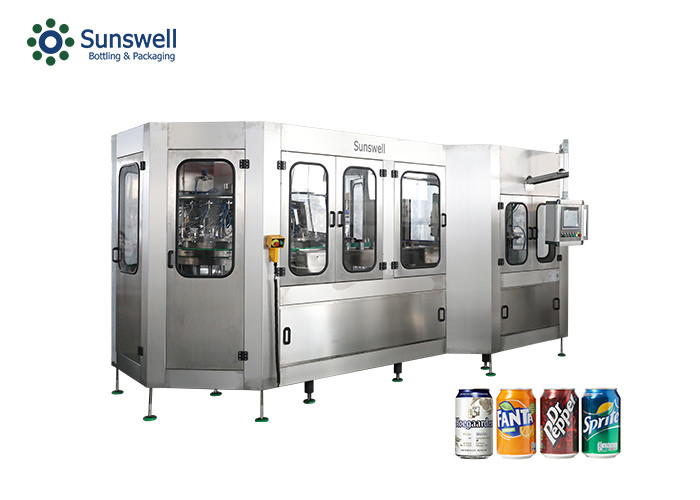

Aluminum Can Soda Beverage Filling Production Line Carbonated Bottling Machine
This series machines feature devices equipped with isobaric filler nozzles, designed for filling and seaming of PET or aluminium cans. Seamers are suitable to seam a wide range of round containers filled with soft drinks, beer and carbonated soft drinks.Filler and seamer are mechanically synchronized, with only one drive, which can smoothly drive the filled containers to the seamer without spillage.
Description:
It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc.
The line is composed of separate automatic rotary Filling machine and can seaming machine.
This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated Water, soda water, etc, It is an ideal machine for small-and medium-sized beverage factories.
Applications:
Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can
Competitive Advantage:
Features
Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
Cycling tank design with precision polishing inside;

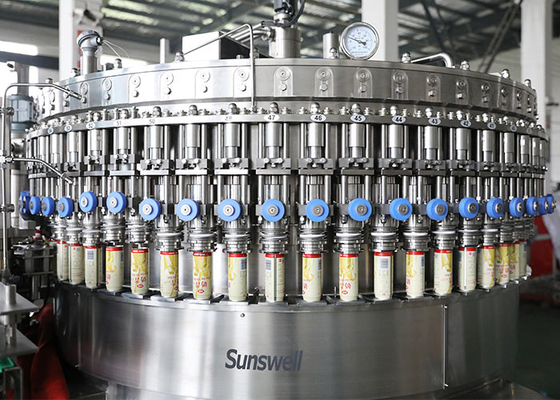

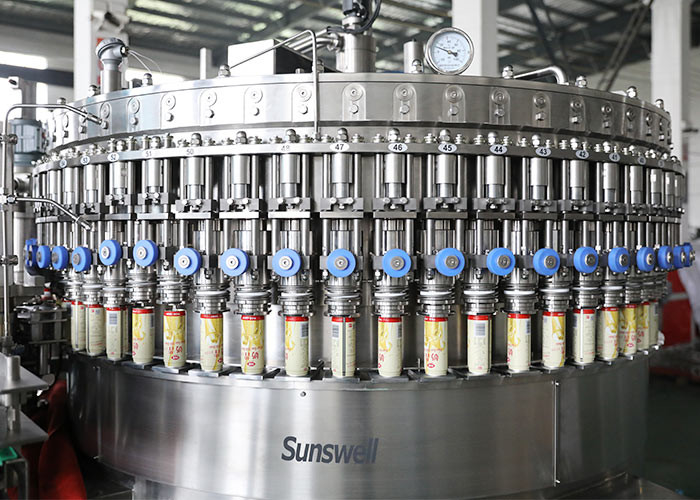

High precision and large flow rate filling valves to meet productive requirement;
Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility.
Working Procedure

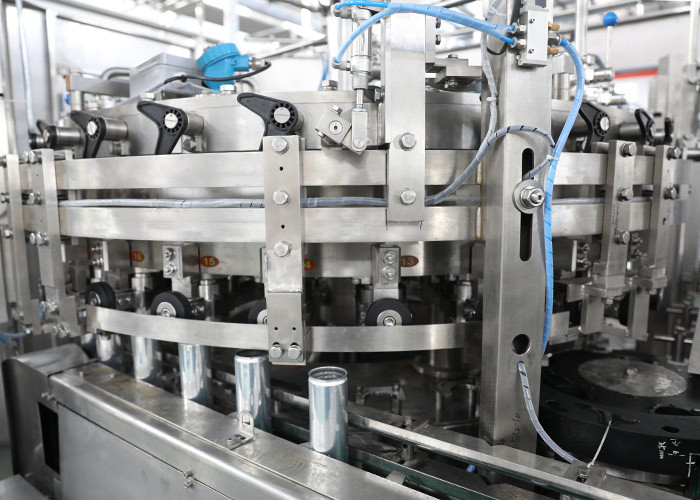

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.
Equipment structure
Main Specification
Aluminum can filling line Filler Seamer Product list
