Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | RBM-6 |
| Minimum Order Quantity: | 1 set |
| Price: | USD50000-300000/set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 90-120 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per year |
| Product Name: | PET Bottle Rotary Blow Molding Machine | Voltage: | 380V/3PH/50HZ,Customized |
|---|---|---|---|
| Condition: | New | Application: | Bottle |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Plastic Processed: | PET | Automatic: | Yes |
| Blow Moulding Type: | Stretch Blow Moulding | Use: | Making PET Bottle |
| Highlight: | Rotary Blow Molding Machinery,1000ml Blow Molding Machine,12000BPH Automatic Blow Molding Machine |
||

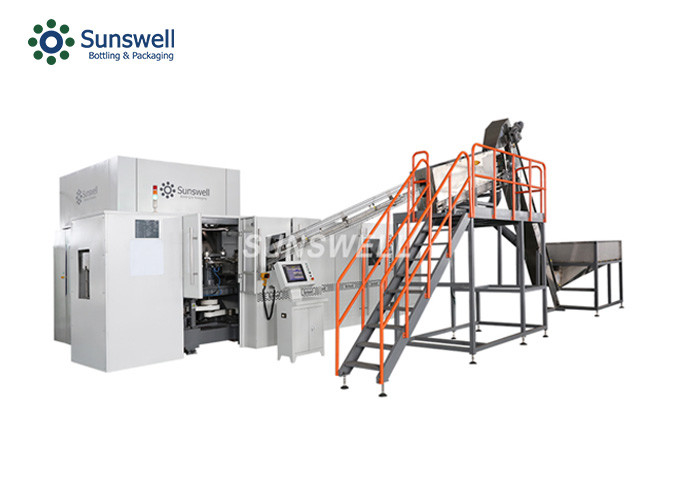

Automatic Rotary PET Bottle Stretch Blow Molding Machine
This PET Bottle Stretch Blow Molding Machine Mainly used to produce high-capacity PET material water bottle, carbonated bottle, edible oil bottle, daily chemical bottles etc.
The high speed automatic PET Bottle stretch blow molding machine is consist of preform loader and unscrambler, heat oven, blowing station, inlet and outlet grippers.
Components
Advantages
Technical Parameter
| Model | SBM6M |
| Capacity | 12000(BPH) |
| Bottle volume | 0.25-2.5L |
| Max. bottle diameter | 115(mm) |
| Max. bottle height | 340(mm) |
| Preform material | PET |
| Preform internal diameter | Φ14-Ф26 |
| Preform height | 150 |
| Supporting ring diameter | ≤Ф36(mm) |
| Blow molder | |
| Cavity | 6 |
| Main driven motor power | 5.5 kw |
| Voltage/Frequency/Phase | 380V±10％/50Hz/three phase + grounding wire |
| Heater | |
| Heating oven quantity | 8 |
| Lamp quantity of each oven | 10 |
| Lamp power | 3/2.5 kw |
| Installation power | 180KW |
| Voltage/Frequency/Phase | 380V±10％/50Hz/three phase + grounding wire |
| Compressed air pressure and consumption | |
| Technic(high pressure) compressed air; Food grade (clean, dry, oil free) | 3.5 MPa |
| Compressed air consumption | According to the products |
| Cooling water | |
| (Bar)Pressure | 6±0.5 |
| (20-40℃)Cooling water mold | 5 m3/h |
| Cooling water heater (m3/h water temperature 7-12℃) | 2.5 m3/h |
| Cooling water consumption for heater (m3/h water temperature 17-22℃) | 2.5 m3/h |
| Machine weight | |
| Blow molder | 13500kg |
| Heater | 4000kg |
Flow chart
