Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO |
| Model Number: | RBM |
| Minimum Order Quantity: | 1 set |
| Price: | USD 155000 per set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 80 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set/sets per month |
| Product Name: | Automatic High Speed Pet 1 Litre Blow Moulding Machine | Compact Design: | 6 Cavity Rotary System |
|---|---|---|---|
| High Effieciency: | 2000 Bottles Per Cavity | Blow Moulding Type: | Stretch Blow Moulding |
| Plastic Processed: | PET | Max.Bottle Height(mm): | 320 Mm |
| Neck Diameter(mm): | 28 Mm | Max.Bottle Diameter(mm): | 110 Mm |
| Highlight: | PET Bottle Automatic Blow Molding Machine,320Mm Bottle Blow Molding Machine,Stretch Automatic Blow Molding Machine |
||
PET bottle making machine Stretch blow molding machine
This PET bottle stretch blow molding machine mainly used to produce high capacity PET material water bottle, carbonated bottle, edible oil bottle, daily chemical bottles, etc. It is consist of preform loader and unscrambler, heating oven, blowing station, inlet and outlet grippers. It can mainly blow, water, juice, carbonated pet bottles.
Parameter
| Model | SBM6M |
| Capacity | 12000(BPH) |
| Bottle volume | 0.25-2.5L |
| Max. bottle diameter | 115(mm) |
| Max. bottle height | 340(mm) |
| Preform material | PET |
| Preform internal diameter | Φ14-Ф26 |
| Preform height | 150 |
| Supporting ring diameter | ≤Ф36(mm) |
| Blow molder | |
| Cavity | 6 |
| Main driven motor power | 5.5 kw |
| Voltage/Frequency/Phase | 380V±10％/50Hz/three phase + grounding wire |
| Heater | |
| Heating oven quantity | 8 |
| Lamp quantity of each oven | 10 |
| Lamp power | 3/2.5 kw |
| Installation power | 180KW |
| Voltage/Frequency/Phase | 380V±10％/50Hz/three phase + grounding wire |
| Compressed air pressure and consumption | |
| Technic(high pressure) compressed air; Food grade (clean, dry, oil free) | 3.5 MPa |
| Compressed air consumption | According to the products |
| Cooling water | |
| (Bar)Pressure | 6±0.5 |
| (20-40℃)Cooling water mold | 5 m3/h |
| Cooling water heater (m3/h water temperature 7-12℃) | 2.5 m3/h |
| Cooling water consumption for heater (m3/h water temperature 17-22℃) | 2.5 m3/h |
| Machine weight | |
| Blow molder | 13500kg |
| Heater | 4000kg |
Details picture

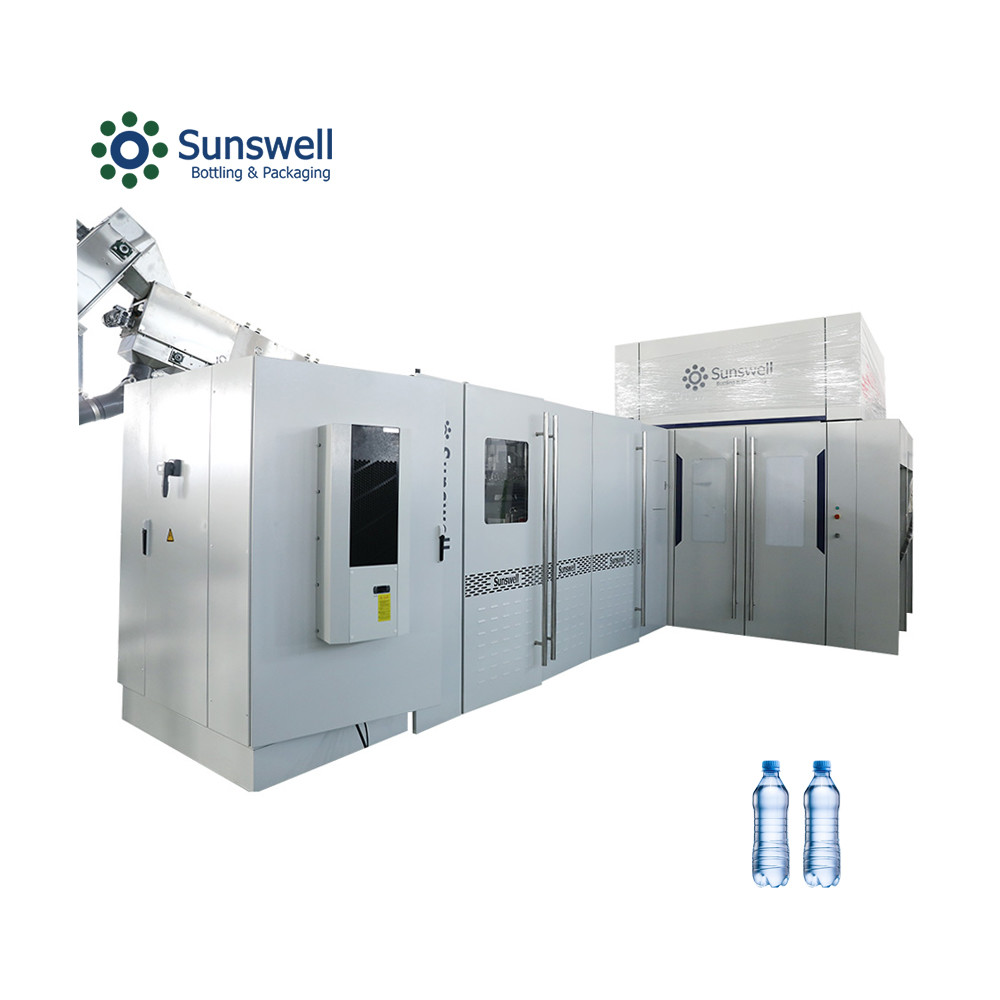

1.Rotary blower molding bird view
2.Rotary Blower molding machine heat oven

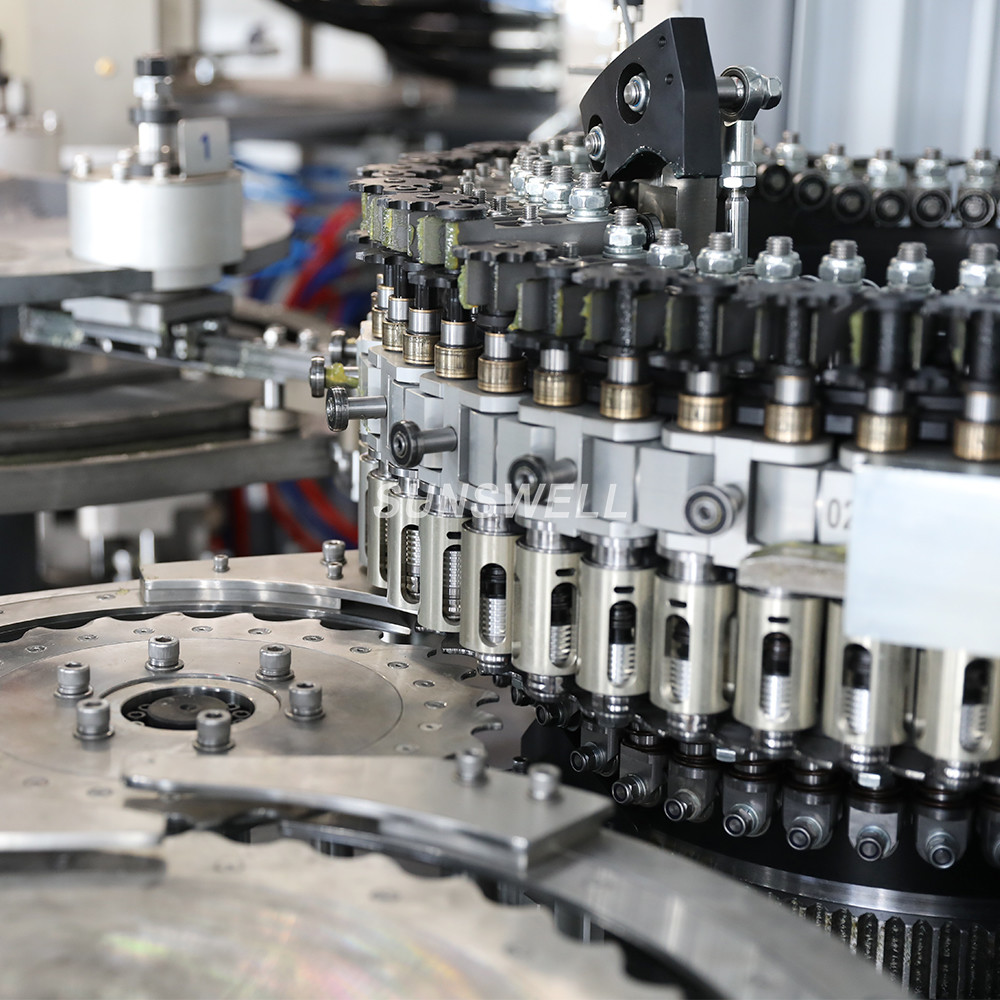

3.Rotary Blower molding machine inlet and outlet gripper

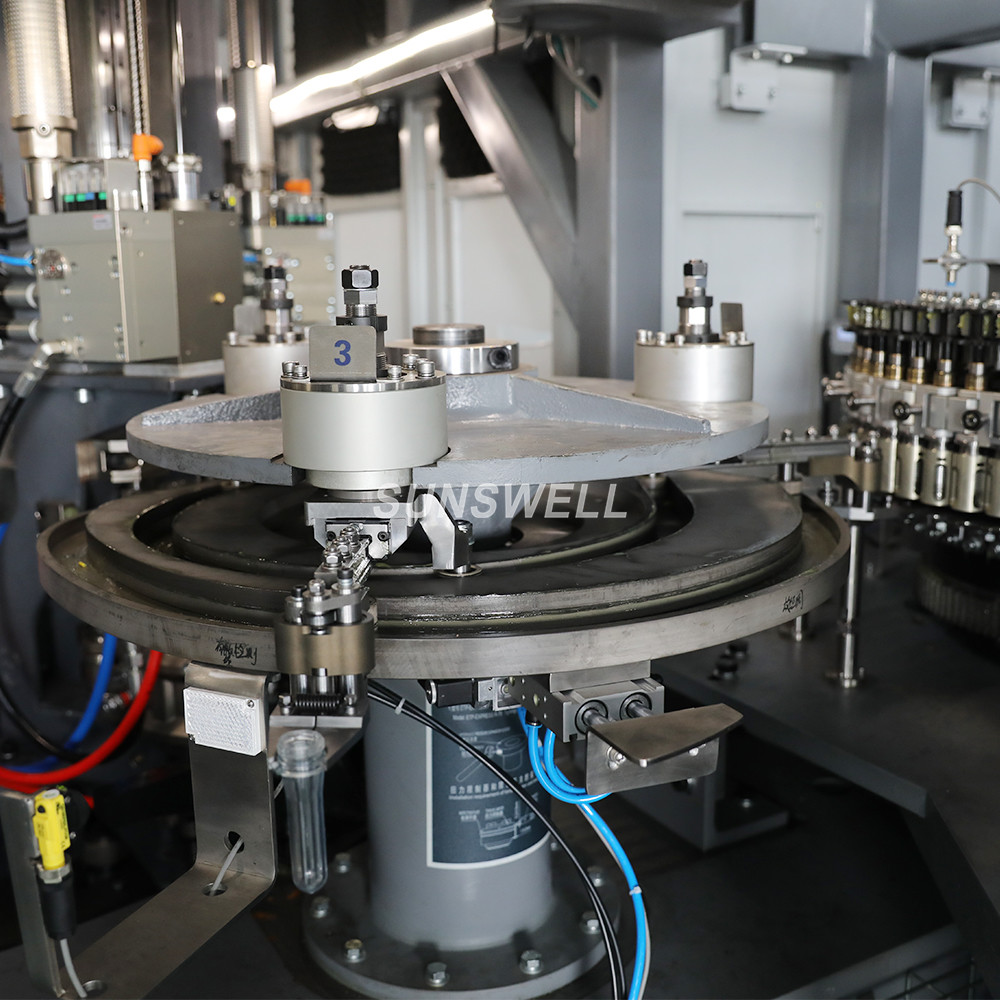

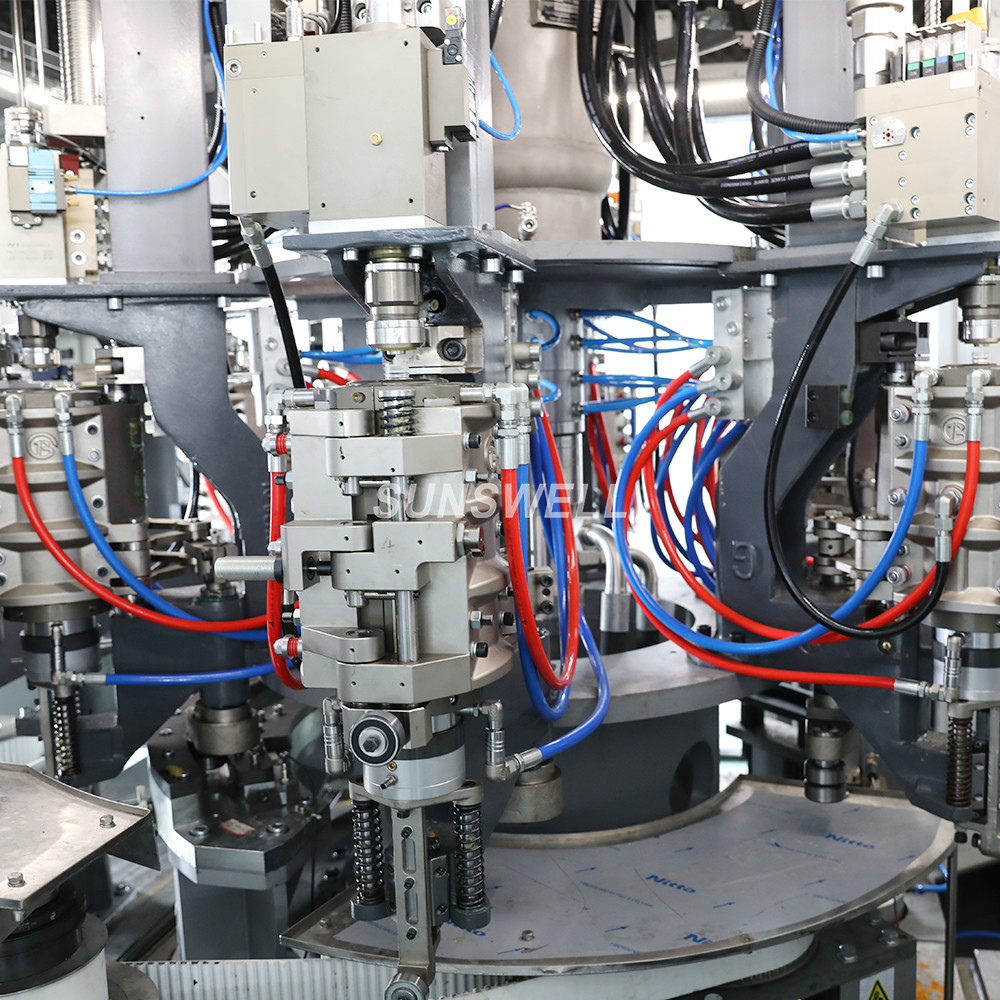

4.Rotary Blower molding machine mold station
