Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | ISO,CE |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 8500 per set |
| Packaging Details: | 1. Seaworthy wooden cases plus wrapper shrinking wrapping/wrapper / packing machine thermal shrink packaging machine 2. If fumigating certificate required, we can also provide the service. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Product Name: | Film Wrapping Machine | Packing Speed: | 4-50 Packs / Min |
|---|---|---|---|
| Dimension(L*W*H): | 2050*1500*1300mm | Weight: | 2000 KG |
| Function: | Use Film Pack Bottles In One Pack | Packing Material: | PE Film |
| Highlight: | Heat Shrinking Wrapping Machine,Shrink Tunnel Packaging Machine,Plastic Film Shrinking Packaging Machine |
||

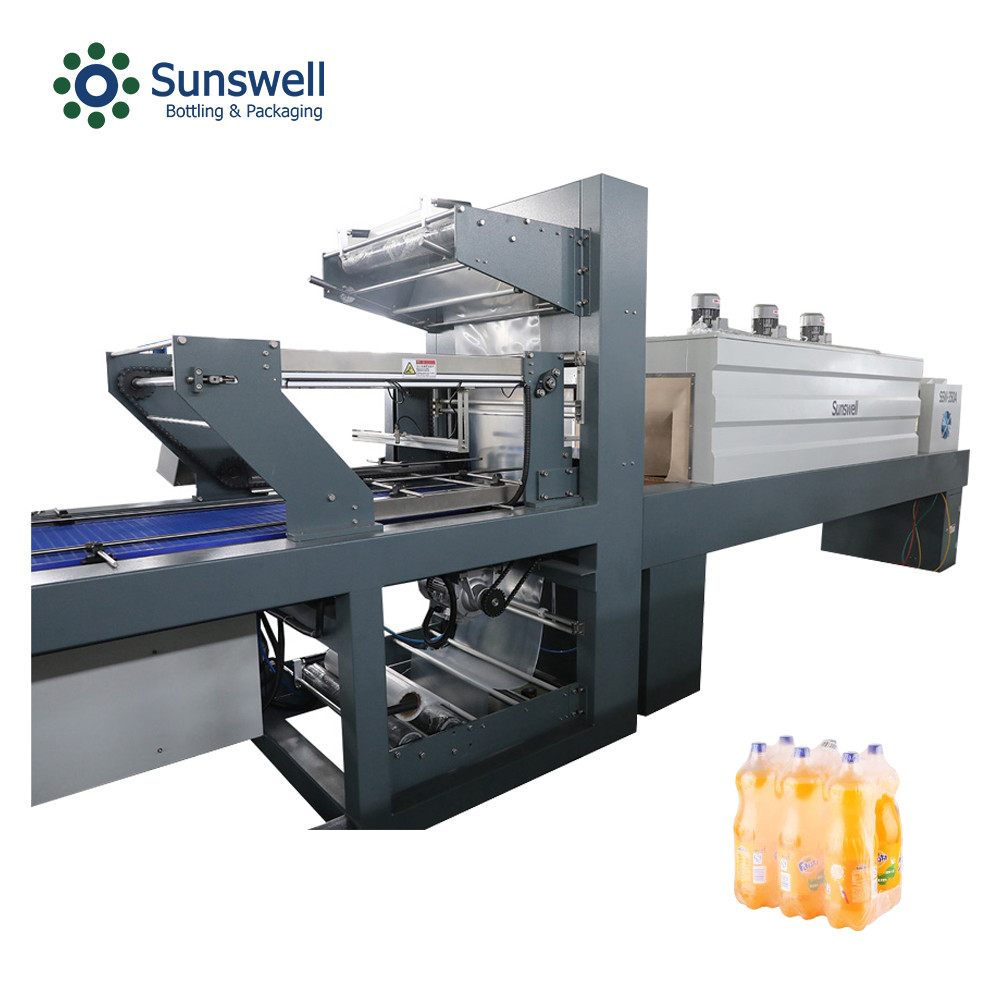

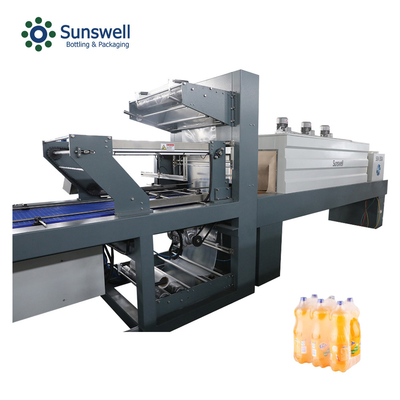

Plastic Film Packaged Machine Heat Shrinking Wrapping with Shrink Tunnel
Automatic PE film shrink / shrinking wrapping machine specially designed for bulk packaging of beer, fruit juice, mineral water,dairy,condiment; all sorts of drinks and beverages with or without bottom support.
Unique film layoff mechanism and constant tension film conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
| Model | SSW |
| Machine Dimension | L16390mm*W1800mm*H2500mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | L460mm*W280mm*H345mm |
| Packaging Speed | 30pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | 3Phase5Line 380V 60Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5200KG |
Detail Pictures
1.Film covering
2.Shrink Tunnel

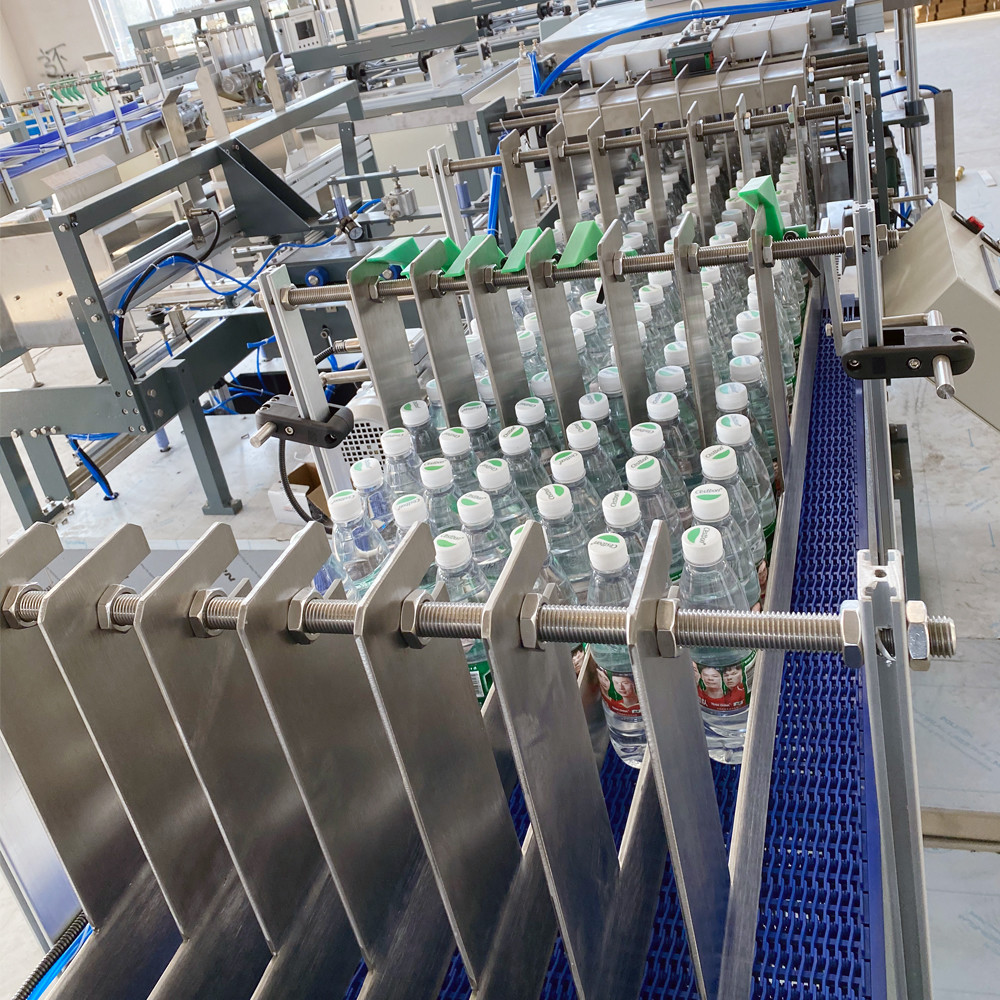

3.Bottle feeding
