Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | DXGF |
| Minimum Order Quantity: | 1 set |
| Price: | USD 25000 per set |
| Packaging Details: | wood case & Carton packaging |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per year |
| Product Name: | Carbonated Soft Drinks Rinsing-Filling-Capping Machine | Capacity: | 2000-30000bph |
|---|---|---|---|
| After Warranty Service: | Video Technical Support, Online Support | Key Selling Points: | Easy To Operate |
| Bottle Type: | PET Plastic Bottle | Filling Accuracy: | 0.05% |
| Filling Material: | Carbonated Beverage,/Juice/Water | Filling Volume: | 250-20000ml |
| Highlight: | Energy Drink Automatic Carbonated Filling Machine,20000ml Carbonated Filling Machine,Soda Bottling Carbonated Filling Machine |
||

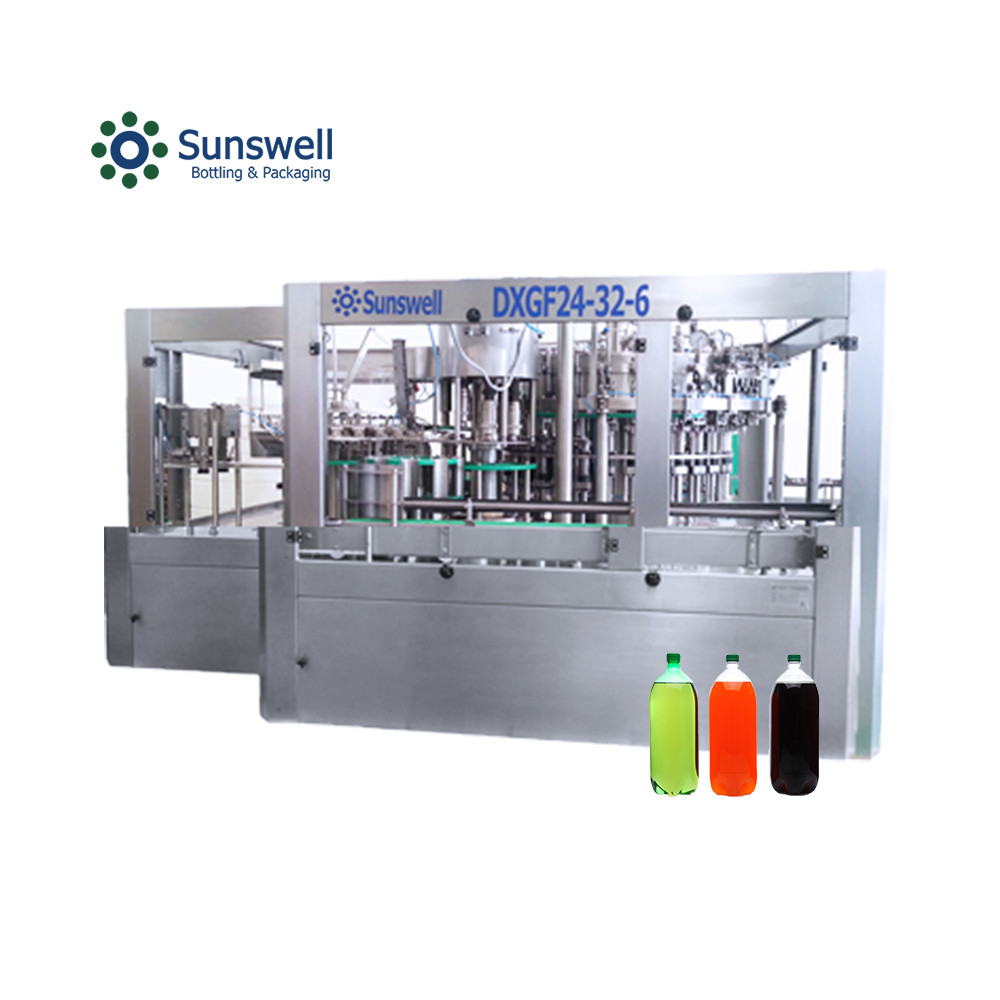

Energy drink making filling soda bottling automatic filling machine
DXGF series is special for carbonated soft drinks, soda water, oxygen / hydrogen rich water, energy drinks filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as carbonated beverage ,fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
Products Specification
| Model | Filling Heads | Capacity 500ml | Bottle Size | Power | Dimension(mm) | Weight(KG) |
| DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
| DCGF18-18-6 | 18 | 3000bph | 200-2000ml |
2.6kw |
2500*1800*2300 | 3000 |
| DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
| DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
| DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
| DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 10000 |
| DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 8500 |
| DCGF72-72-18 | 72 | 19000bph | 200-2000ml | 16kw | 6250*4773*2700 | 8500 |

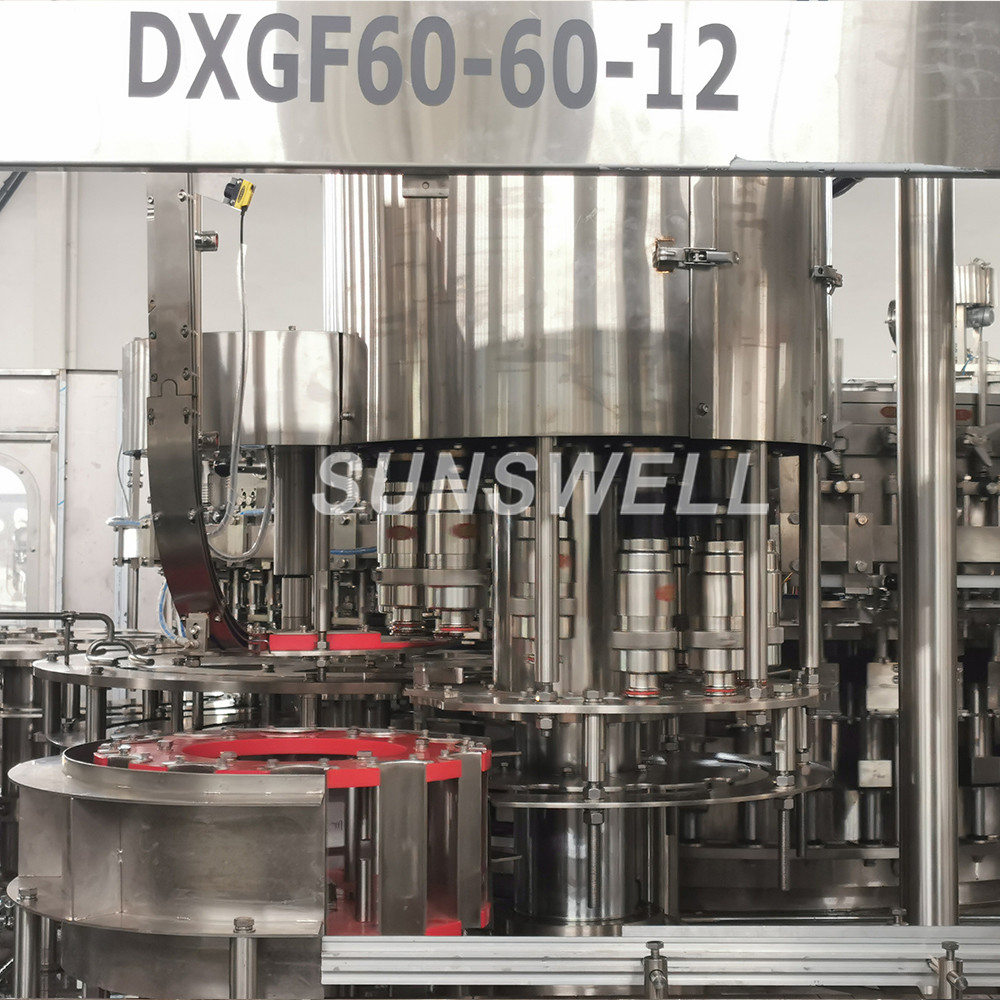

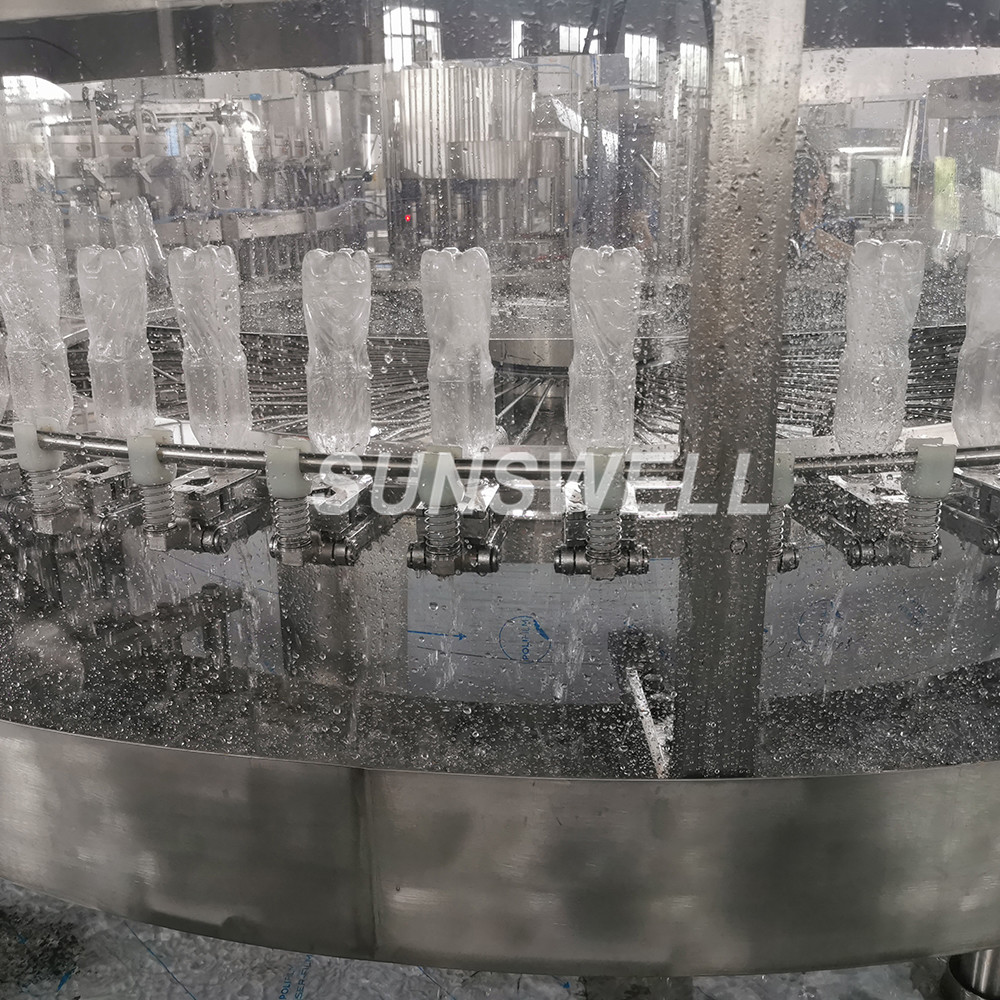

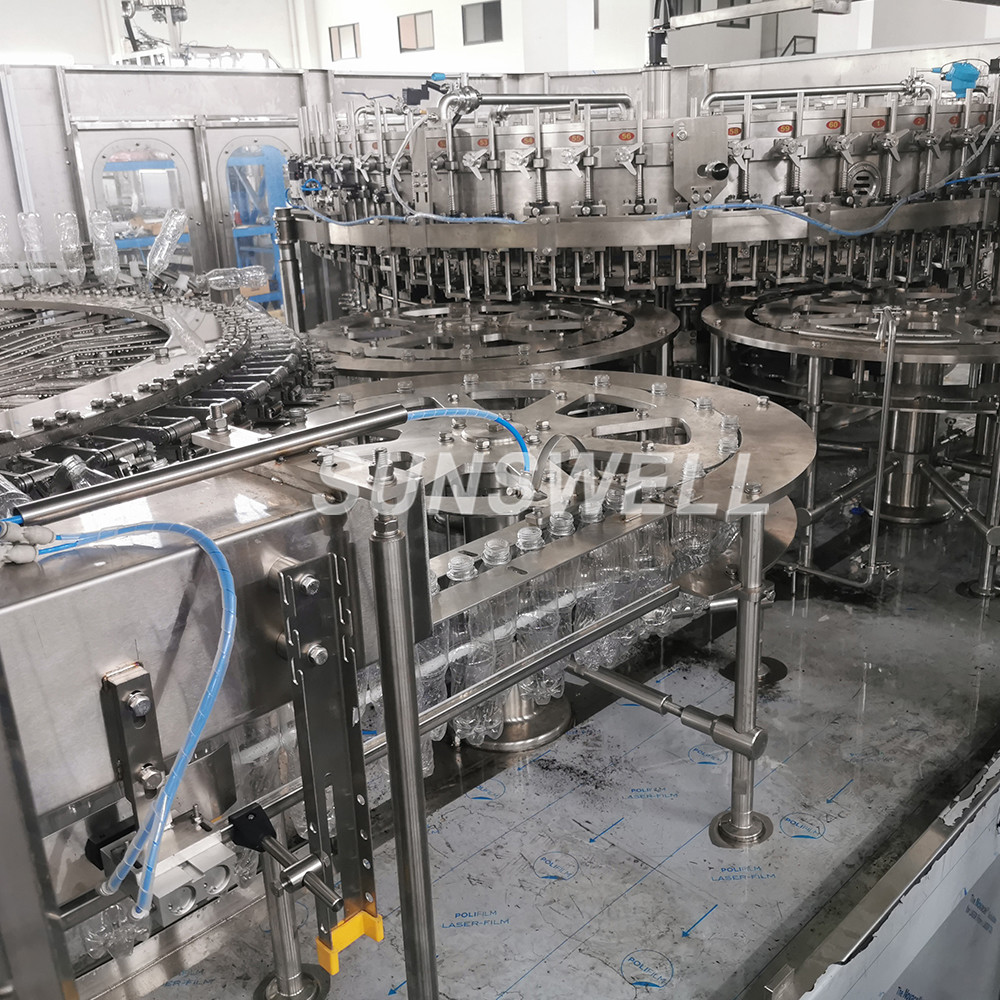

Detail pictures
A. Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel contain carbon steel
C. Guide bottle system, simple structure, according to bottle style, can change
D. The whole machine can be controlled automatically by PLC
E. Filling hydraulic material liquid level height adopts liquid level probe control, liquid level steady, filling reliable
F. The machine important parts and electrical elements is import production
G. Filling hydraulic material can be controlled automatically and have CIP washing connector
