High Speed Edible Oil Filling Machine 1000bph Automatic Liquid

High Speed Edible Oil Filling Machine 1000bph Automatic Liquid
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid High Speed Edible Oil Filling Machine 1000bph Automatic Liquid
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: ssw
Minimum Order Quantity: 1 Set
Price: USD 20000 per Set
Packaging Details: wood case & carton packaging
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now
Type: Filling Machine Packaging Type: Bottles
Voltage: 380V, 50Hz (adjustable) Weight: 2200 KG
Key Selling Points: Long Service Life Filling Material: Oil
Warranty Of Core Components: 2 Years Capacity: 1000-20000bph
Bottle Type: PET Plastic Bottle Number Of Working Positions: Filler 16, Capper 5
Air Consumption: 0.5 M3/min Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Application: Food, Commodity Packaging Material: Plastic, Glass
Driven Type: Electric Dimension(L*W*H): 1800*2670*2950 Mm
Warranty: 2 Years Machinery Capacity: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH
Core Components: Motor, Pump, PLC, Gear Filling Accurancy: ±0.5%
Suitable For: Diameter 50~200mm, Height 150~360mm Material Supply Pressure: 0.03~0.08 MPa
Vacuum In Filling Tank: 50~80mbar Main Motor Power: 1.5Kw
Highlight:

Automatic Edible Oil capping Filling Machine

,

1.5 Kw Edible Oil Filling Machine

,

1000bph Edible Oil Filling Machine

Products Description

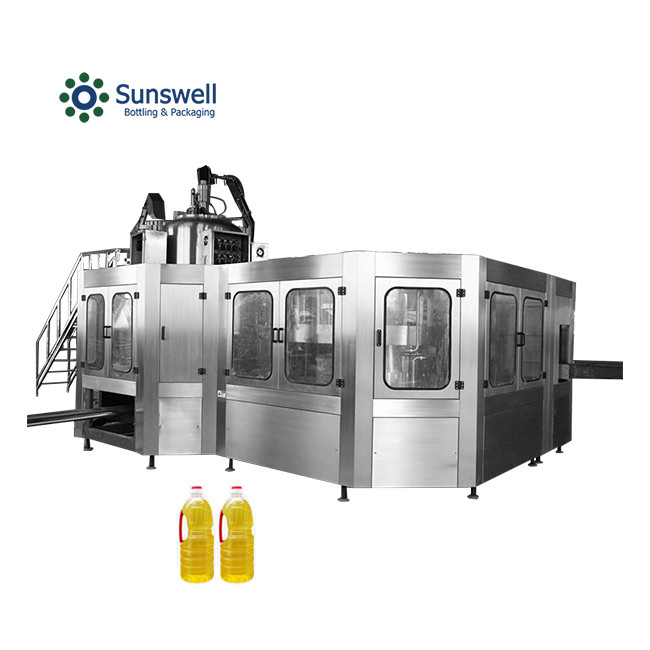

Edible Oil Filling Machine

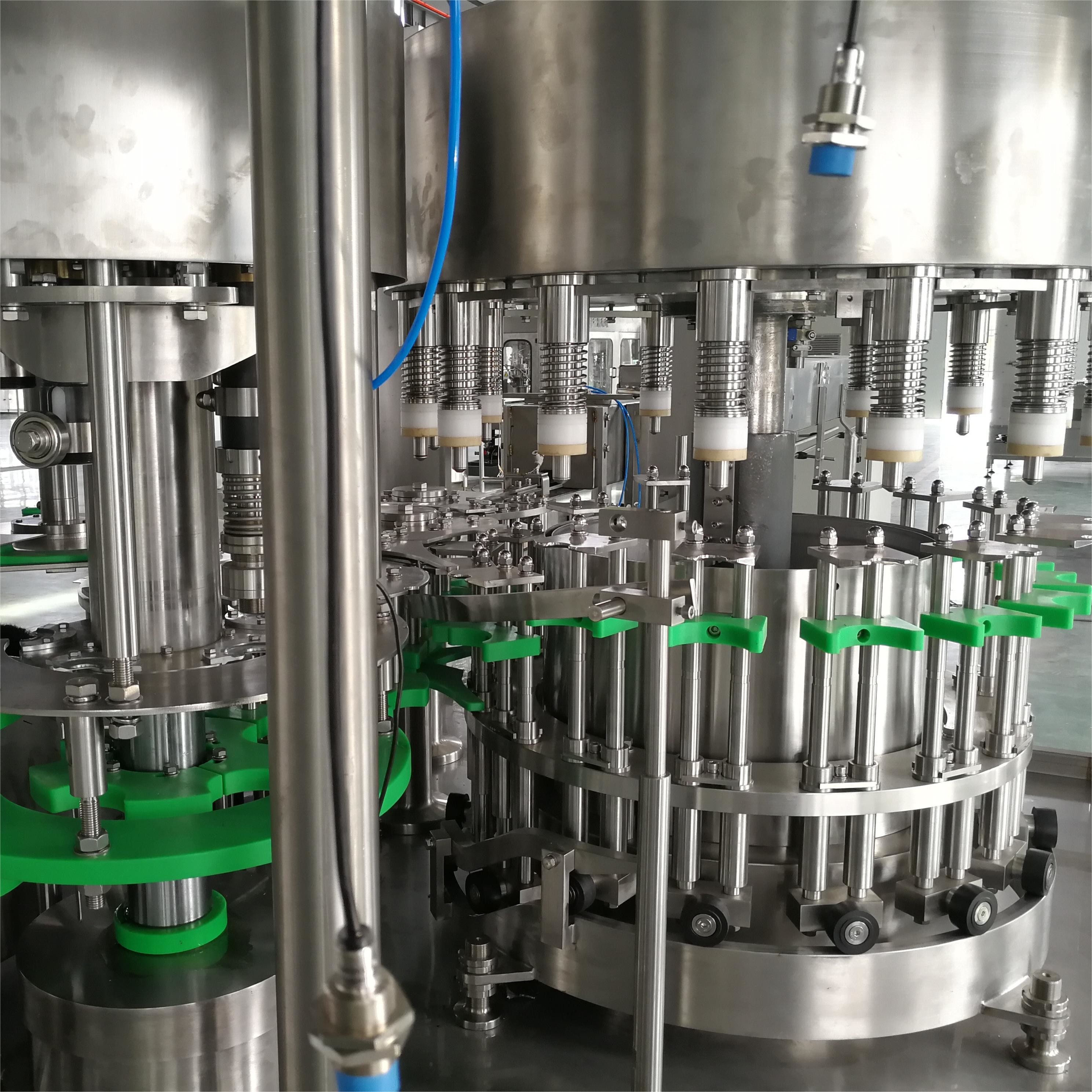

The edible oil filling machine is special for edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of edible oil technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 0
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 1
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 2
Main Features
*Compact structured, good-looking, easy to operate and highly automated.
* Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.

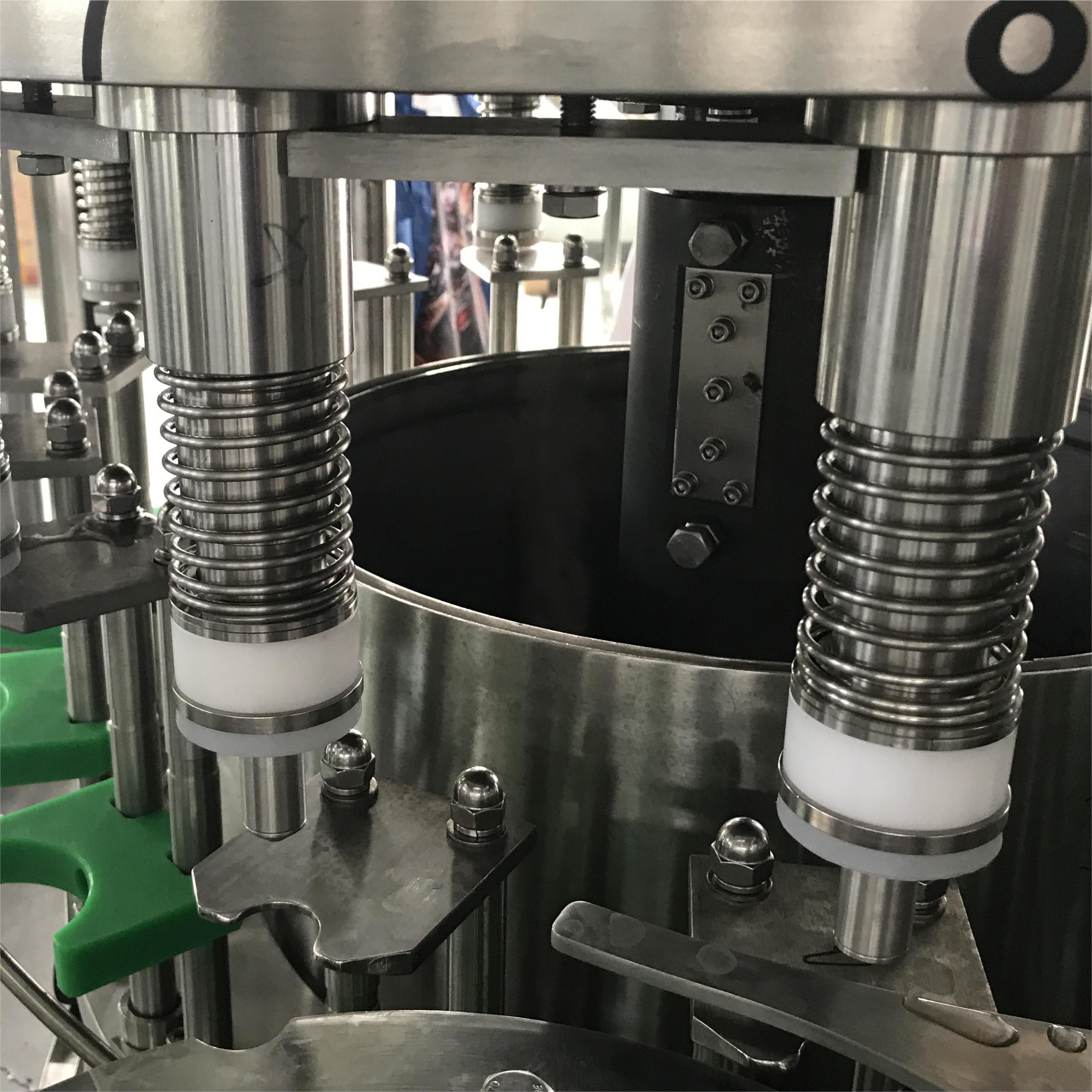

* Filling volume is controlled with film valves to ensure accurate filling.
* High-speed and highly accurate filling valves ensure no loss of liquid at high speed.
* Liquid buffer element specially designed inside filling valvescan eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.

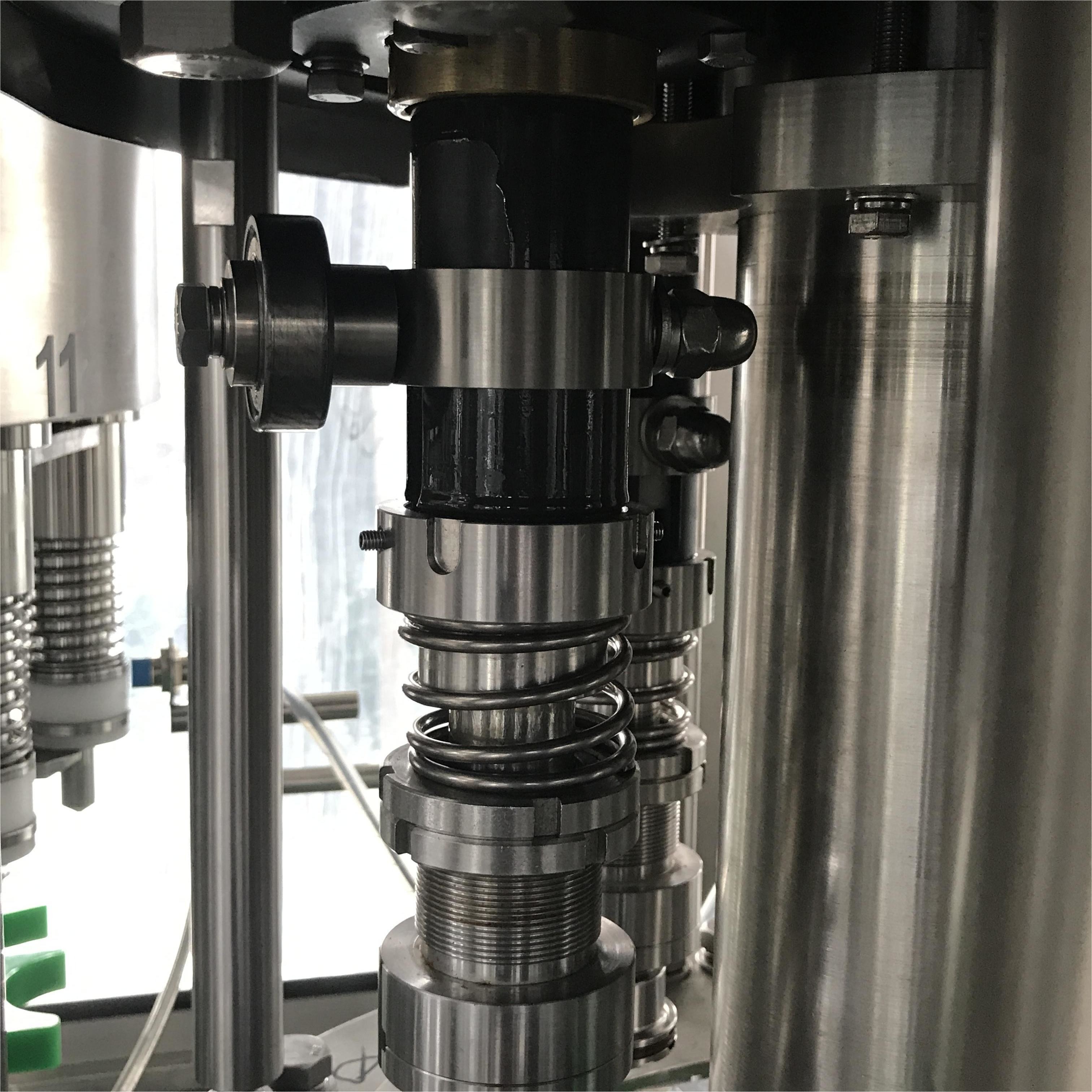

* Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
* Highly effective cap sorting and feed in system is protective for feed in and cap absence.
* Equipped with overload system to safeguard machine and operators.
* Equipped with cap absence detector and bottle jam-up detector,which could stop the monoblock in that case.
* Equipped withoutput calculating function for monoblock.
* Main electronic components (touch screen, PLC and frequency inverter) are imported products.
Model
GF12-5
GF16-5
GF20-5
GF30-6
GF40-8
GF60-10
Capacity
(BPH/1L)
2,000
3,000
5,000
8,000
12,000
15,000
Machinery Structure
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 3

Bottle infeed

Bottle infeed by combination of infeed screw and infeed starwheel. Equipped with bottle jam protection device.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 4

Filling Machine

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck.
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
Bottle is conveying by the wheel in the filling part.
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 5

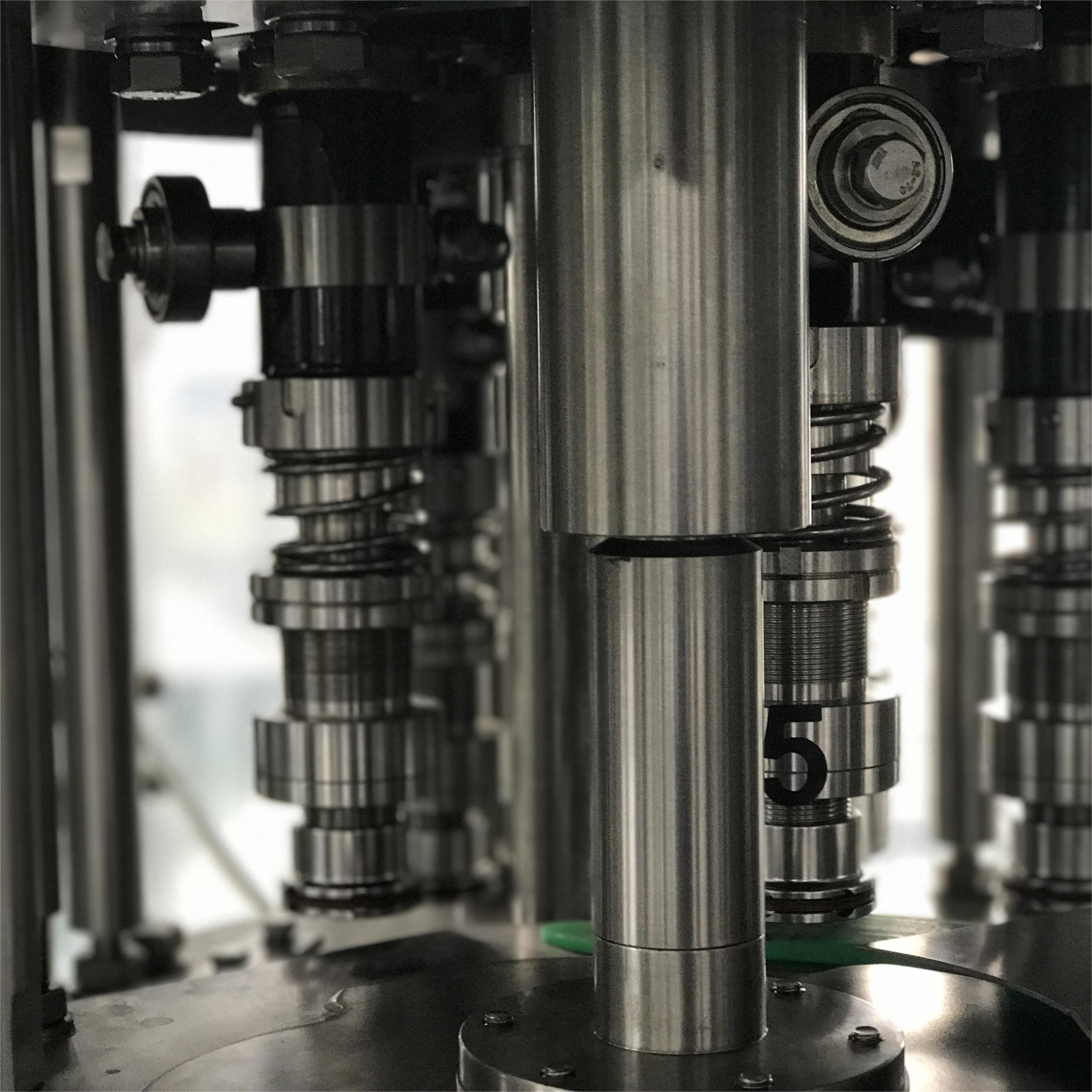

Flip (Press-on) Capper

Edible Oil Filling Machine capper
High Speed Edible Oil Filling Machine 1000bph Automatic Liquid 6

Conveyor wheel part

The material is combination of stainless steel and nylon and the wheel has block bottle protect device.

Machine Frame

* The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.
* Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear
transmission.
* The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
* The output shaft of the main motor is equipped overload protection to secure machine safety.

Electronic control system part
The electronic components like PLC and transducer are from Schneider, Mitsubishi, Omron, etc., and the pneumatic devices are also from international famous brands.

Tag:

20000BPH Mustard Oil Filling Machine,

330ml Mustard Oil Filling Machine,

110mm mustard oil filling machine
