Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | BZXGF |
| Minimum Order Quantity: | 1 set |
| Price: | USD 20000 per set |
| Packaging Details: | wood case & Carton packaging |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per year |
| Product Name: | Edible Oil Filling Machine | Capacity: | 5000-36000BPH |
|---|---|---|---|
| Filling Accuracy: | ±0.5% | Filling Material: | Oil |
| Key Selling Points: | Long Service Life | Number Of Working Positions: | Rinser 14, Filler 12, Capper 5 |
| Usage: | Olive Oil,coconut Oil,plant Oil,cooking Oil | ||
| Highlight: | Edible Oil sealing Filling Machine automated,50Ml Edible Oil Filling Machine,6000BPH Edible Oil Filling Machine |
||

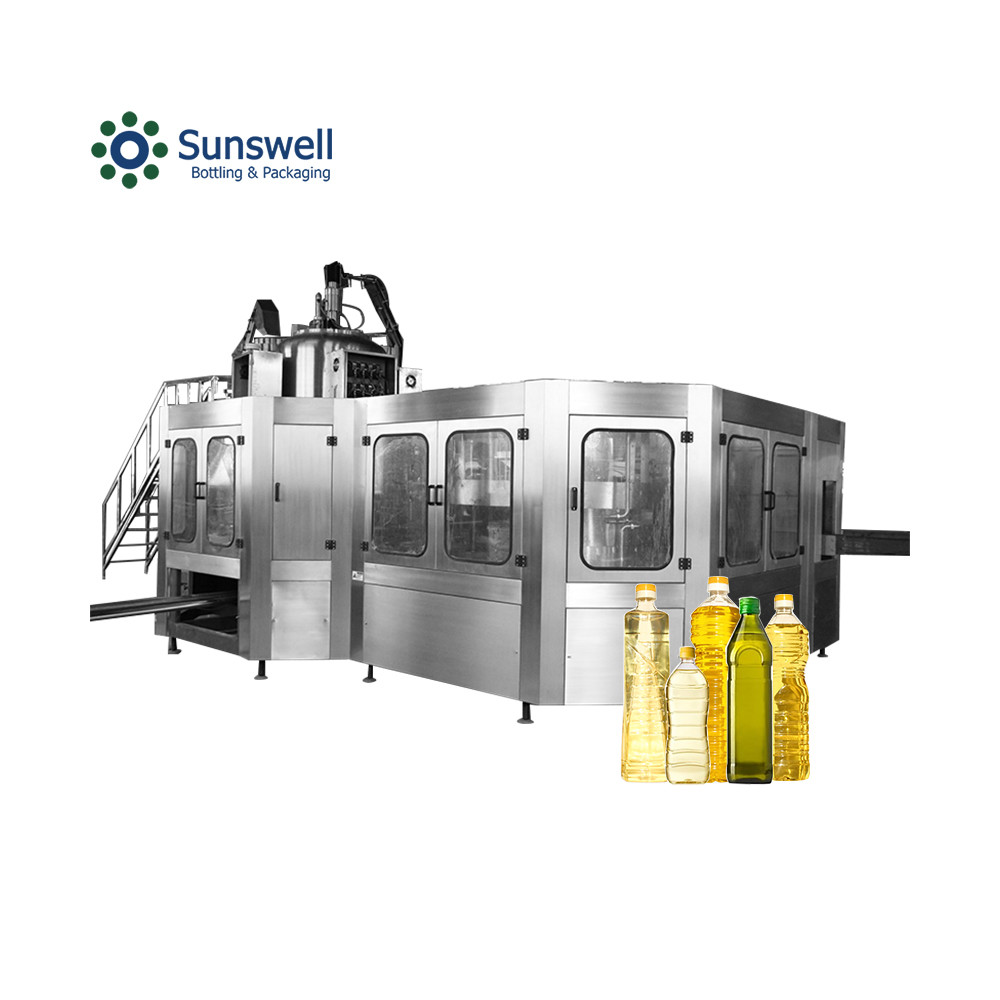

Liquid filling machine oil 50 ml 3700 ml filling and packing machine

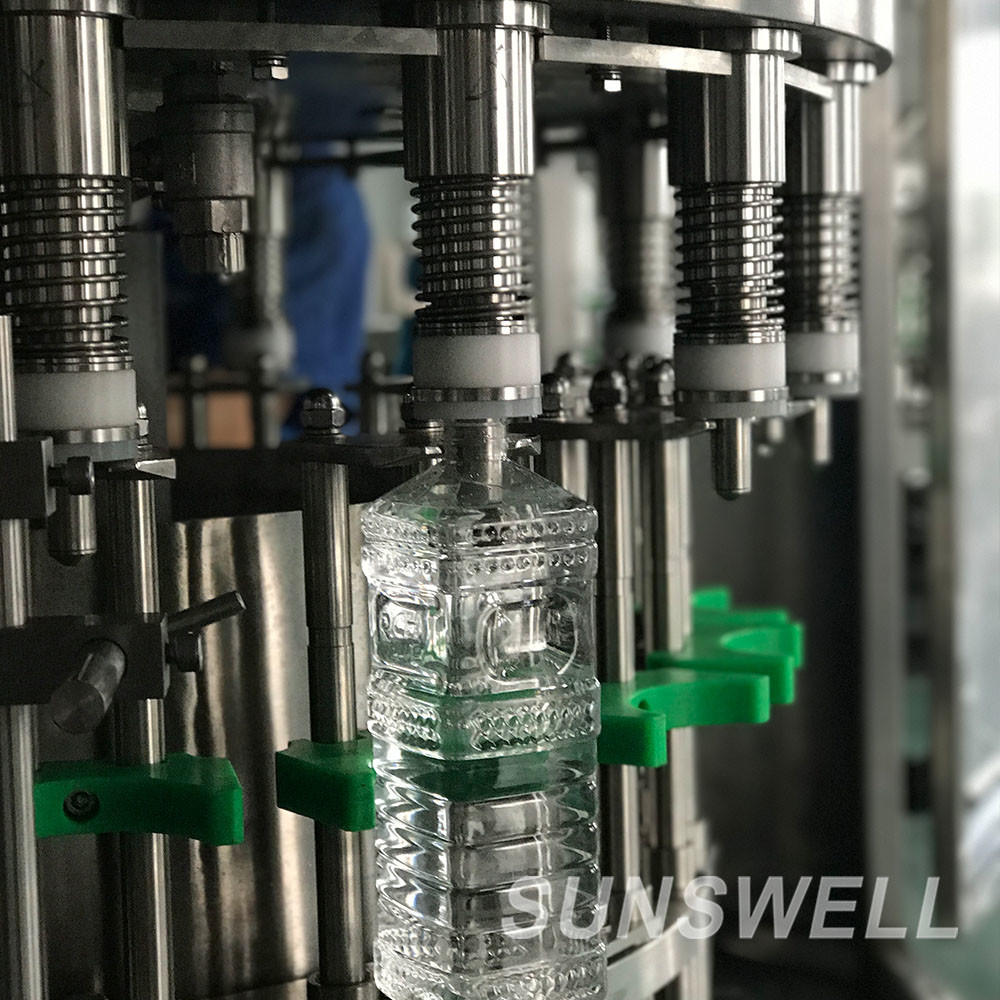

Empty bottles are transferred by variable pitch screw and star-wheels to bottle supports of filling station. There are weighting sensors installed on the bottle supports which are well protected. After automatic peeling is empty bottle inspection and slanting bottle inspection, start to slow filling, then switch to normal filling.
It will be switched slow filling when liquid level is approaching determined position, finally the sensor will send signal to stop filling when reach the determined weight. Reset the weighting sensor after bottles leave the bottle support for the following filling, filled bottle will be conveyed to capper by transition star-wheel. Capper is equipped with cap elevator and unscrambler, sorted caps will be conveyed by cap chute to cap feed-in plate where the caps will be captured by capper for capping. Capped bottle will be conveyed to conveying chain for following process.
Main Features
1.Compact structured, good-looking, easy to operate and highly automated.
Product List
| Model | BZXGF14-12-5 | BZXGF16-16-5 | BZXGF24-24-6 | BZXGF32-32-10 | BZXGF50-50-12 |
| Capacity(BPH/1L) | 5000 | 7000 | 10000 | 12000 | 18000 |
| Machine dimension | 2200×1550×2650mm (L×W×H) | 2780×2080×2700mm (L×W×H) | 2830×2130×2700mm (L×W×H) | 3380×2580×2700mm (L × W × H) | 5300×3800×2700mm (L × W × H) |
| Machine weight | 3000kg | 4200kg | 5000kg | 6000kg | 8500kg |

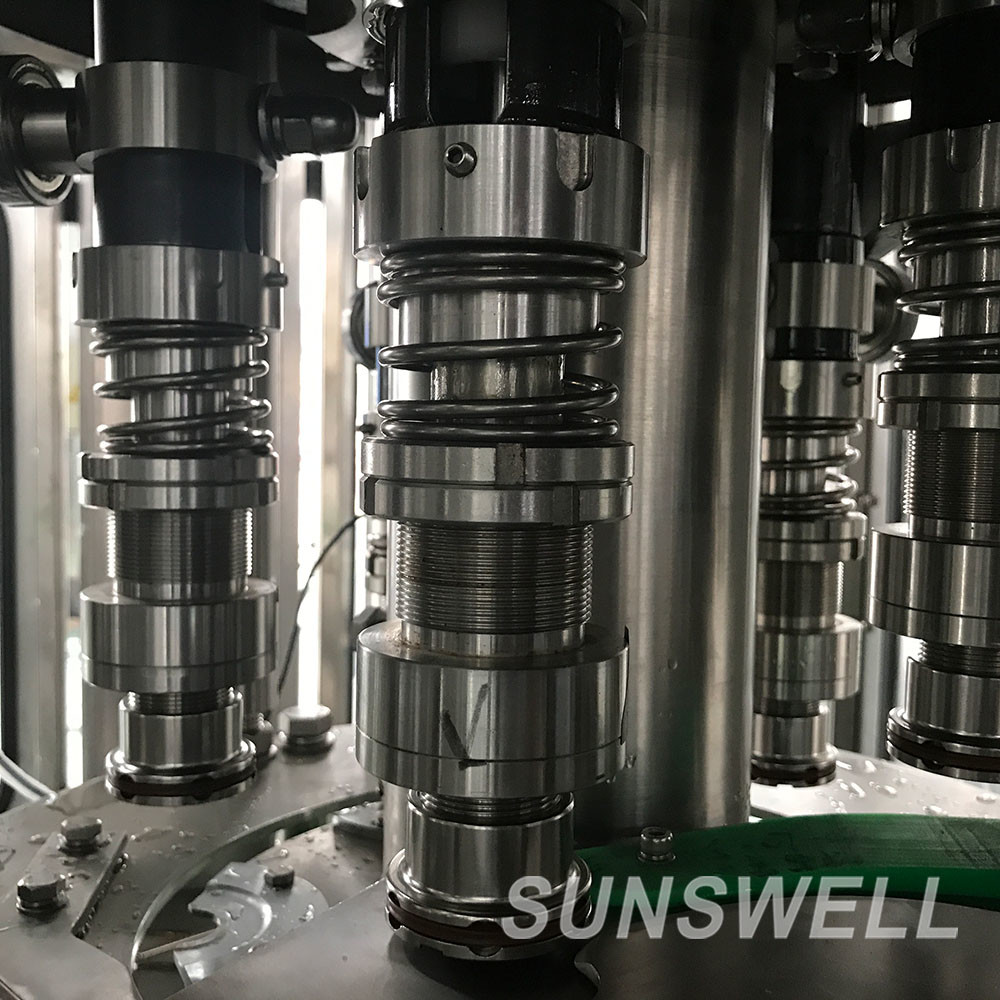

Detail pictures
Machinery Structure
2.Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.
Machine Frame
1.The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.
2.Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.
3.The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
4.The output shaft of the main motor is equipped overload protection to secure machine safety.
Electrical control system
The electrical cabinet is made of plated carbon steel. From bottle infeed to bottle discharge, a PLC controls the fully automatic operation of the 3-in-1 Unit.
