Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine

Basic Information

Place of Origin:	Jiangsu
Brand Name:	SUNSWELL
Certification:	CE
Model Number:	YDGF30-6

Minimum Order Quantity:	1 set
Price:	USD15000-50000/set
Packaging Details:	wooden case
Delivery Time:	75 days
Supply Ability:	50 sets per year

Get Best Price Contact Now

Automatic Grade:	Automatic	Condition:	New
Driven Type:	Electric	Type:	Filling Machine
Packaging Type:	Cans	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Online Support
Voltage:	220V/380V,380V Or Customize	Material:	SUS304/316
Warranty:	One Year	Usage:	Beverage Packaging
Capacity:	2000-30000bph	Product Name:	Can Filling Machine For Soft Drink,aluminum Can Energy Drink Filling Machine
Highlight:	SUS304 Aluminum Canning Line , Large Capacity CSD Beverage Filling Machine , 220V Aluminum Canning Line

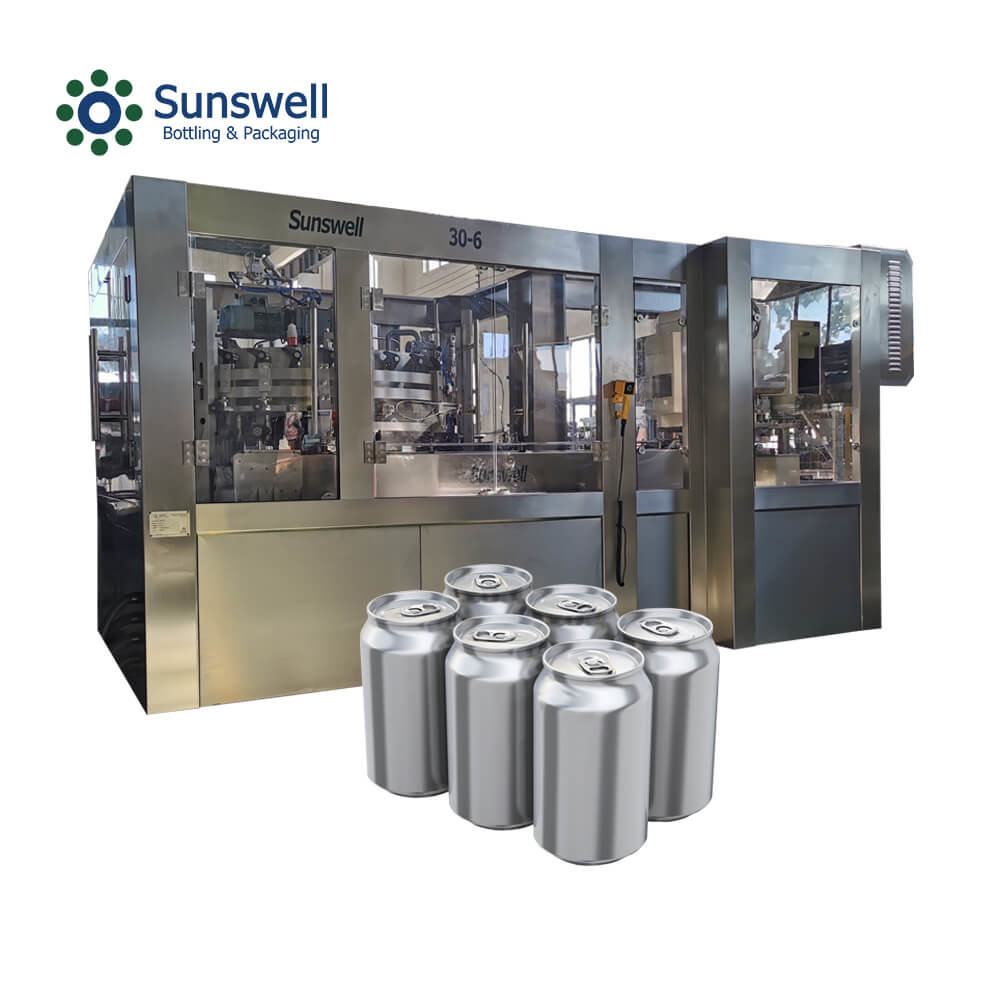

Automatic Aluminum Can Carbonated Drink Filling Machine

General description

It is suitable for filling and capping aluminum canned beverage, such as water, beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.

Features

Wholly sealed window structure which is beautiful, concise, easy and highly operated;2. Cycling tank design with precision polishing inside;
High precision and large flow rate filling valves to meet productive requirement;
Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility;
The filling valve adopts high precision mechanism valve, fast speed filling, high precision liquid level;
The filling vat adopts SUS304 material designed selaing vat, to achieve consitant pressure filling;
The flow rate of the filling valve ＞125ml/s;
Main transmission adopts toothed belt and gearbox open-type transmission assemblies, high efficiency, low noise;
The main drive adopts step-less speed change for frequency conversion, the whole machine adopts PLC control; the capping machine and filling machine adopts coupling joint, to ensure synchronization of two machines;
With filling with can, no filling without can;
The filling manner is constant pressure filling, with fast filling speed and stable action;
Seaming trolley adopts high hardness alloy steel quench (HRC＞62), capping curve adopts projection grinder precision machining, to ensure the quality of capping;
With capping with can , no capping without can control system, to ensure the normal running of the machine;
With CIP automatic rinsing function;
With centralized lubrication system.

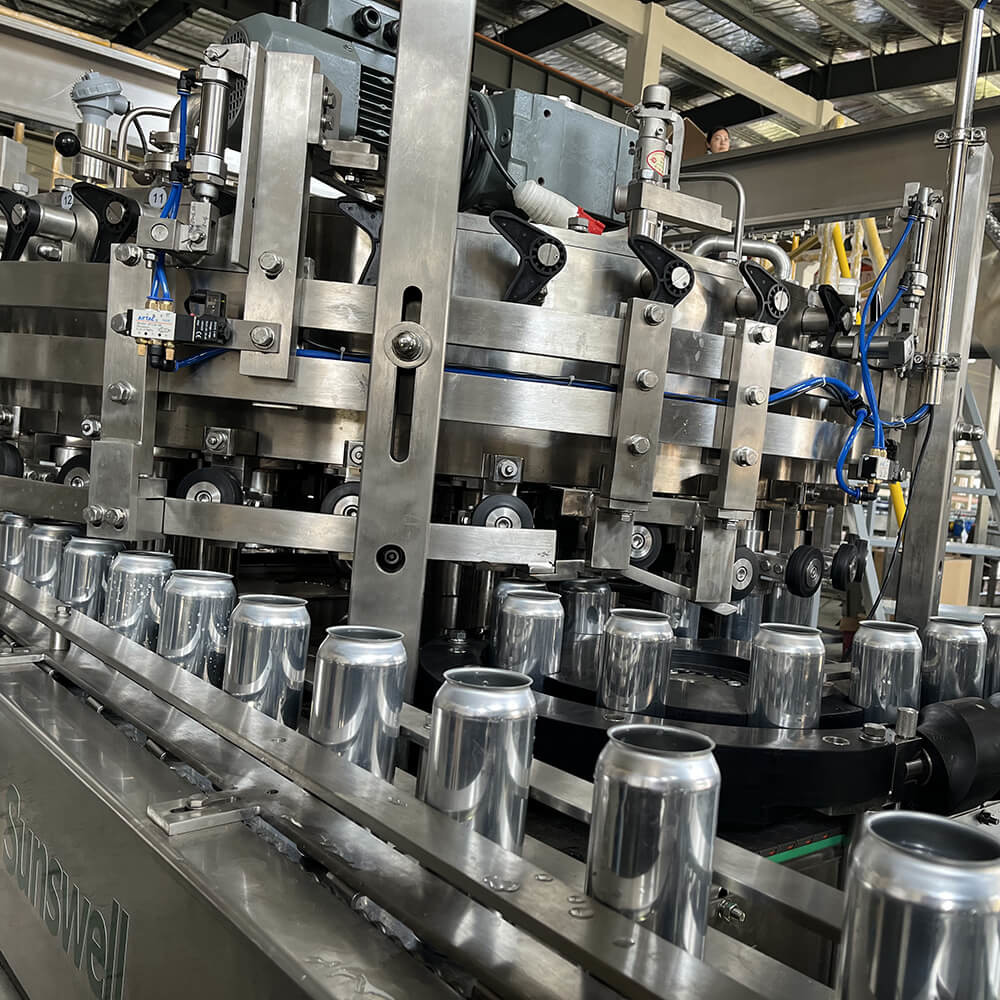

Filler

Filling machine components mainly consist of filling cylinder, turntable, filling valve, lifting devices, upper and lower distributor, star wheel device, screw transmission device and main liquid pipe, etc.Filling valve mainly consists of valve seat, spool, valve sleeve, middle sleeve, spring and air pipe, etc. The interior streamlined design ensures that there is no sanitary comer, built-in mechanical, stable and reliable performance, low maintenance costs.

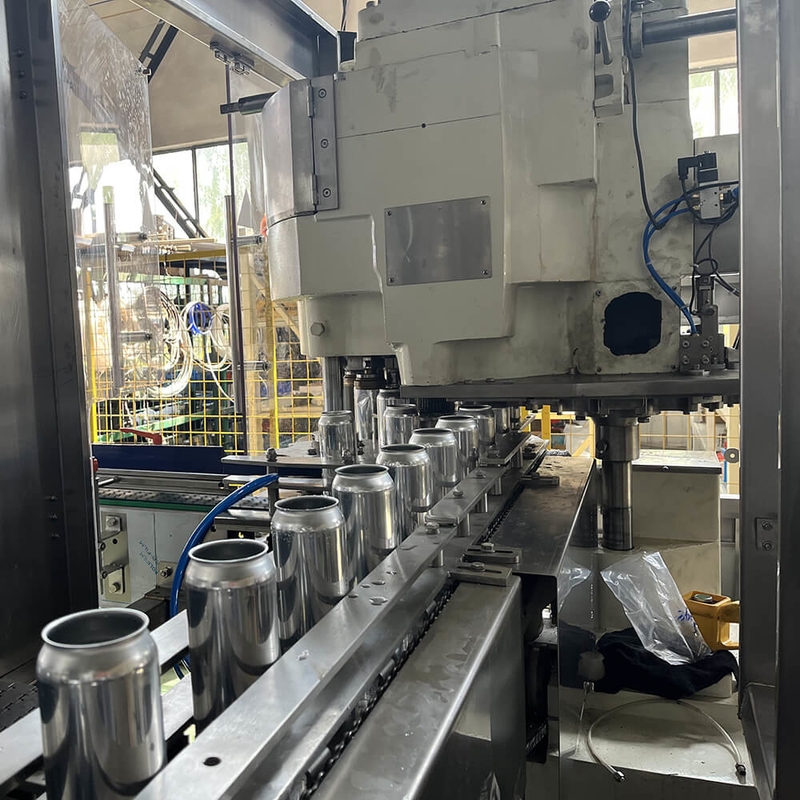

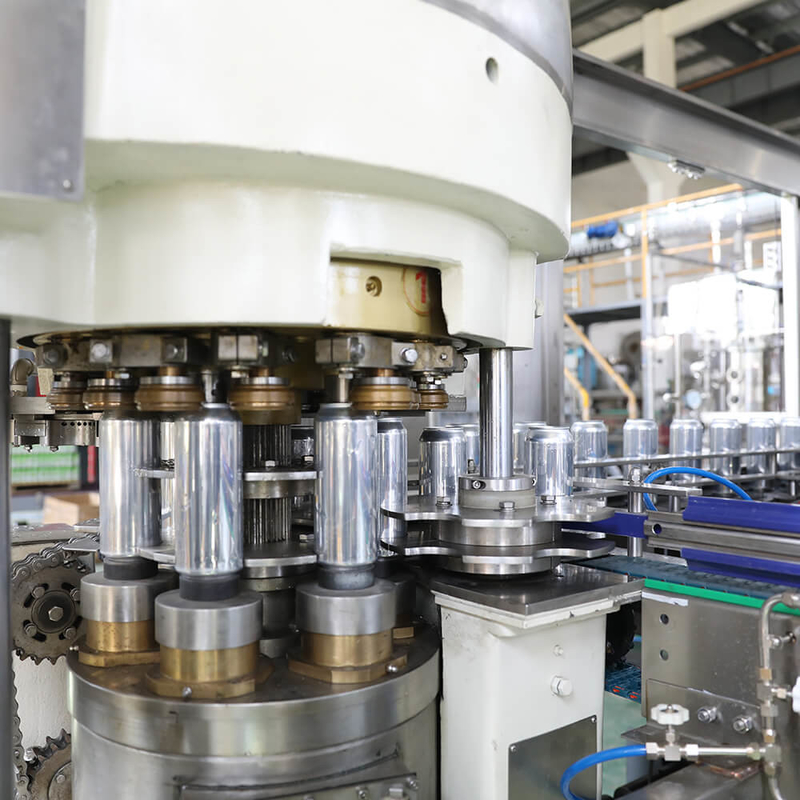

Seamer

Can sealing machine mainly consists of the upper part of the machine, the lower part of the machine, under the cover device, motor drive, hydraulic system and other components.This model type of sealing machine with a filling machine drive, the cans coming out from the can outfeed dial wheel of the filling machine are infed in a free order at the beginning and through a period of chain acceleration to make the tank reach the correct pitch feed tank side belts, in order to prevent the overflow of the liquid in the tank, the tank must have a certain range of adjustment for the delivery of the dial on the side belt of the tank. When each can passes through the conister to detect the proximity switch, the proximity switch is actuated. At this time, the cylinder (makes the lid cutter on the lid cutter in the lid retract, a can lid is removed from the lid stack, and is carried by the lid transfer turret under the capping head, before the cap can reach the capping device together with the cap, the cap can be accurately positioned through the cap transfer and the sealing star wheel swivel, and then when the cap arrives, the cap supporting platform accurately lifts the can to the cap's position.
At this moment, the lid is pushed by the lid to press the lid onto the top of the tank. When the can is clamped between the tray can holder and the capping head, the lids start to rotate together, and the capping operation begins. Two flanging rollers complete the crimping.
The lid rod pushes the can away from the capping head, and at the same time, the tank star wheel pushes the sealed cans out of the can sealer and puts the cans onto the conveyor belt of the can table.
Hydraulic system of can sealing machine
Hydraulic system of can sealing machine mainly realize the lifting of the rack of can sealing machine. The hydraulic includes manual hydraulic pump, reversing valve and two working oil cylinders.
Manual hydraulic pump is the power source, when operating, the manual force acts on the pressure rod to drive the plunger to reciprocate, and generates the pressure of the oil. The pressure oil enters two working oil cylinder at the same time through the reversing valve. When asked the rack to lift, the piston of cylinder move upward, the rack also slowly rises to reach the required height, if the direction of the reversing valve is changed, the rack will fall automatically.

Technical parameter


			Model
			YDGF12-1
			YDGF18-4
			YDGF20-4
			YDGF30-6
			...


			Filling head
			12
			18
			20
			30
			...


			Seaming head
			1
			4
			4
			6
			...


			Capacity (cans/hr)
			1500
			9000
			12000
			18000
			...


			Can diameter (mm)
			50-80
			50-80
			50-80
			50-80
			...


			Can height (mm)
			90-170
			90-170
			90-170
			90-170
			...


			Motor power (kw)
			1.8
			2.2
			2.5
			8.26
			...


			Dimension (mm)
			2100*1380*2000
			2320*1380*2000
			2720*1680*2000
			4265*2700*2450
			...


			Weight (kg)
			2200
			2500
			2800
			5000
			...


Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine 0

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine 1

Full Automatic Aluminum Canning Line Large Capacity CSD Beverage Filling Machine 2
