CSD Beverage Liquid Nitrogen Dosing Machine Beer Water 380v

CSD beverage beer water nitrogen injection liquid nitrogen dosing machine

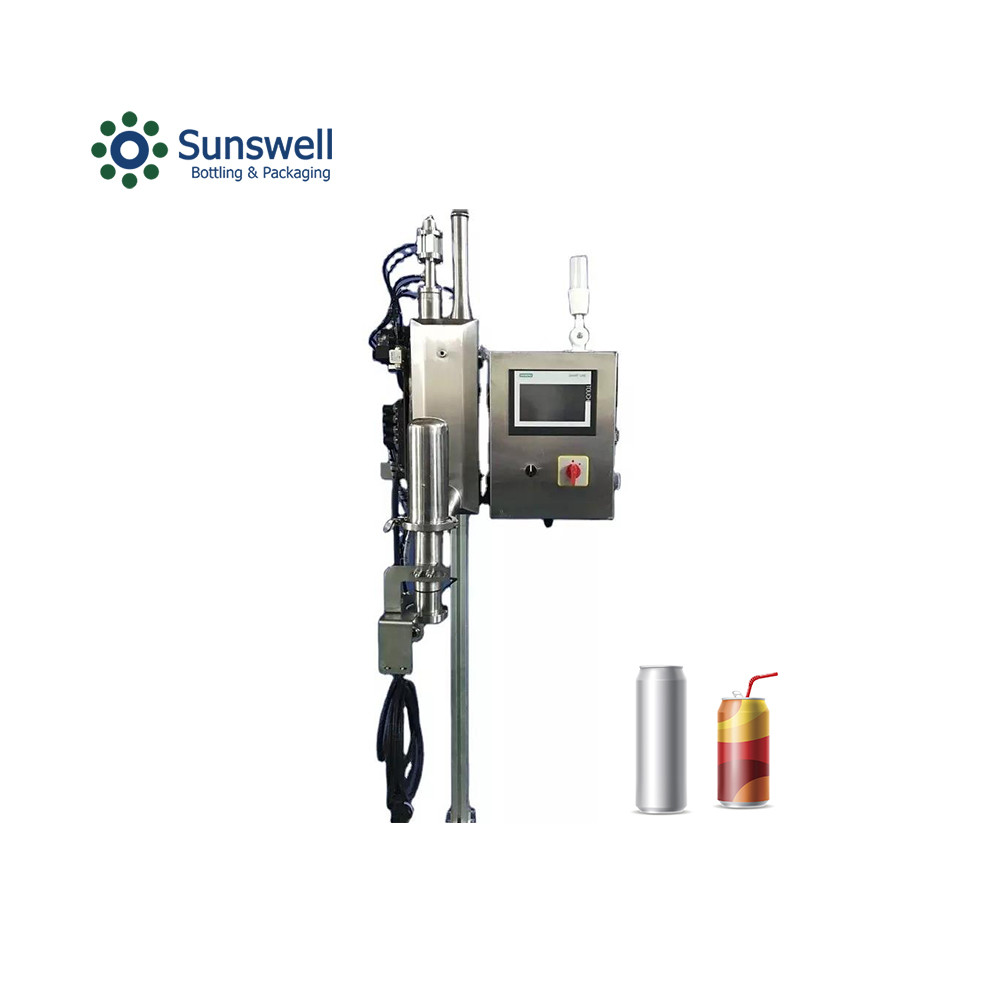

SSW-300 , Liquid Nitrogen Dosing Machine is the latest liquid nitrogen dosing machine in China which uses the similar machines abroad for reference. It could control dosing volume accurately, no-container-no-liquid dosing, small size, easy installation and could coordinate with any filling production line. Control system comprises Siemens PLC and touch screen, all pipes adopt vacuum heat-insulated pipes which could ensure minimum consumption of liquid nitrogen and no frosting operation condition.

Capacity:	0-300/ 0-2000 cans per min, Set up dosing speed
Suitable Can Size:	At will
Power:	200W
Voltage:	380V 50HZ 3 phase+N+G
Weight:	32KG
Dimension:	1000mm×600mm×2000mm



Working Process

1. Supple of Liquid Nitrogen: Regulate to 15 (0.1MPa) and connect to liquid nitrogen pipe.

2. Compressed Air or Nitrogen: Supply to the working of dosing valve. The pipe diameter must be 1/4inch and pressure range is from 50psig to 100psig (3.4 to 6.9 bar). Set the pressure to 50 psig (0.35MPa). Please do not set the pressure too high, high pressure means high impact, it will shorten the lifetime of dosing valve element and internal vacuum pipe.

Main Features

1,No can, no dosing, reduce the waste of nitrogen. With detector to adjust the speed.

2,Vacuum isolate protect to reduce the running cost.

3,Nozzle protecting device, avoid ice phenomenon.

4,Liquid air separator, ensure liquid nitrogen in super cold situation, improve the pure degree of liquid nitrogen, improve the dosing accuracy.

5,Liquid nitrogen buffer function, control the liquid spilling issuer.

6,Equipped with(option) 10μm filter,avoid granule contamination.

7,Accurate dosing speed to 300bpm.
8,Alarm indicator can monitor this whole system.

9,PLC / Touch screen control system

10,Directly connect with nitrogen vacuum isolate pipe.
