Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.

English
Request A Quote
Products

Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line

Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: YDGF
Minimum Order Quantity: 1 Set
Price: USD 20000 per Set
Packaging Details: wood case & carton packaging
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now
Condition: New Machinery Capacity: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 2000BPH
Packaging Type: Cartons Voltage: 380V/50HZ,or Customized
Weight: 5000 KG Key Selling Points: Long Service Life
Filling Accuracy: ±8ml Core Components: Motor, PLC, Bearing
Keywords 1: Carbonated Aluminum Can Filling Keywords 2: Aluminum Can Carbonated Filling
Keywords 3: Carbonated Aluminum Can Filling Application: Beverage
Packaging Material: Plastic, Metal, Glass Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Driven Type:: Electric Dimension(L*W*H): 4265*2700*2450mm
Warranty: 1 Year Filling Material: Beer, Water, Juice, Carbonated Soft Drinks
Function: Can Rinser Filler Seamer Capacity: 1000-36000CPH
Container Material: PET Can / Aluminum Can/ Metal Can Container Size: 250ml-600ml
Highlight:

600ml Soda Can Production Line

,

Automatic Aluminum Can Filling Machine

,

Soda Can Production Line 8000BPH

Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 0
Products Description

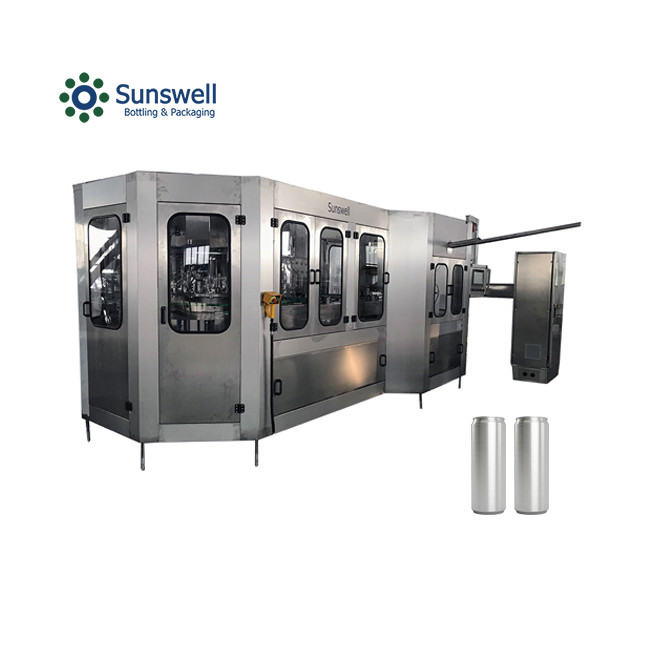

Measuring Cup Aluminum Can Filling Machine

It is suitable for filling beer or beverage which contains CO2, (such as carbonated juice,beer, etc.), also non carbonated drinks like juice, tea, drinking birdnest, etc. It is equipped with float ball cylinder electrical pneumatic valve, which is also the world’s advanced technology for carbonated and non carbonated canning filling. It adopts float ball cylinder quantitative filling and the electrical valve controls the filling capacity to be constant during filling process.
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 1

Working Procedure

First, the washed empty cans enter the filling cylinder through the infeed screw and star
wheel. After pressed and sealed under the centrifugal cover, the cans are rinsed with CO2, and start filling after the cans are left for a while to stand still. The filling is performed in rapid filling and slow filling in turn. After finishing filling,
stand still for a while and then perform slow and fast discharging in turn. The centrifugal cover lifts after exhausting
completely, then the finished cans discharge from filling cylinder and enter the conveyor belt. The cans enter the sealing machine by foam purge driven by chain fork. The capping head of the sealing machine rotates and keeps the revolution. The capping head presses the can with the lid and rotates. Turn over the edge of can and turn the edge to finish the sealing action by the control of cam. The sealed cans are transferred to conveyor system through the discharge star wheel.
Details Images
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 2
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 3

Can Infeed

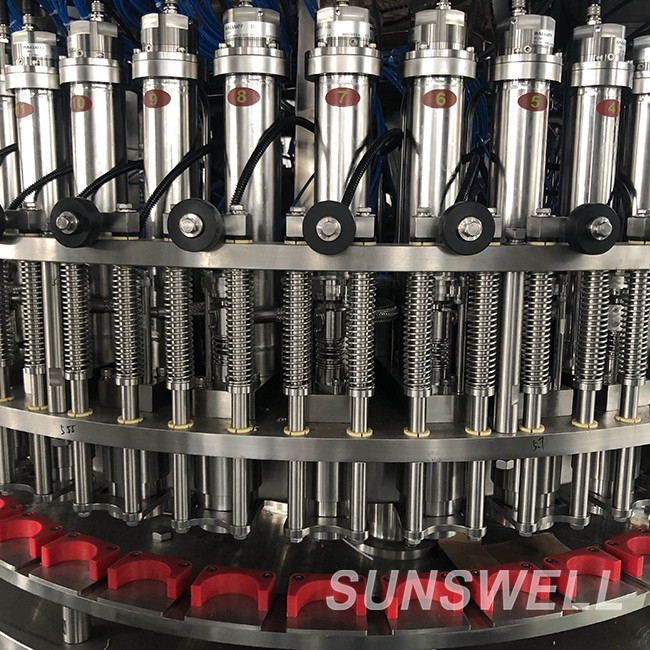

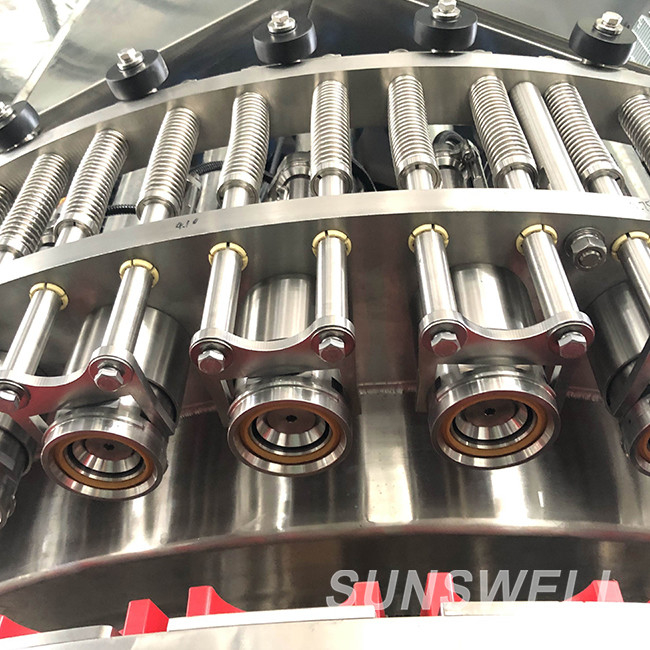

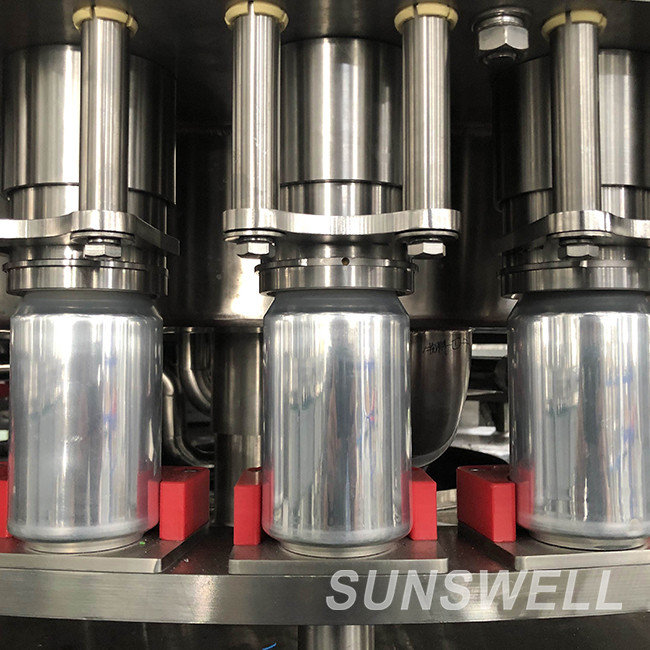

Filler


Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 4
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 5

Seamer



Can Outfeed


Main configuration
Touch screen
Siemens or Proface
Inverter
Siemens or Mitsubishi
PLC
Siemens or Mitsubishi
Main motor
ABB
Pneumatic component
Airtac or SMC
Breaker
Siemens or Schneider
Contactor
Siemens or Schneider
Proximity switch
Leuze
Photoelectric switch
Leuze

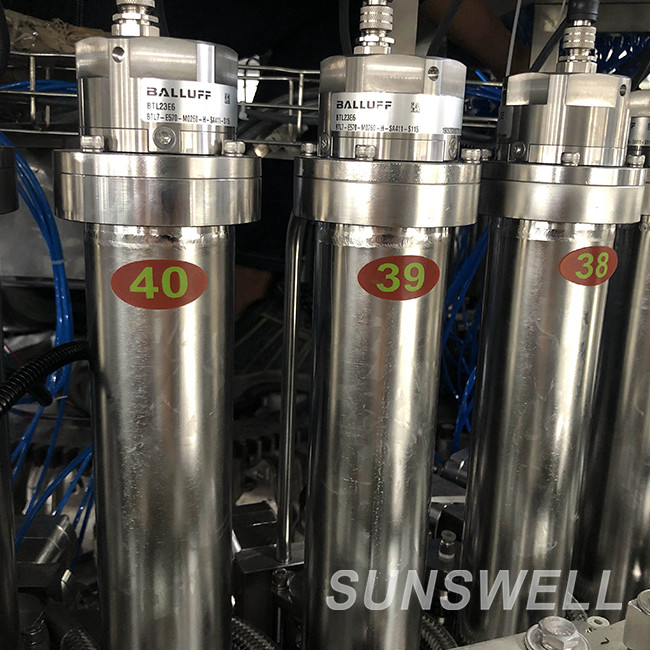

Filling level balancing valve
Balluff
Technical Parameters
Capacity
18,000BPH (330ml); 12,000BPH (500ml)
Filling heads
30pcs
Seaming heads
6pcs
Filling method
Isobaric Filling
Filling temperature
0-4°C
Filling accuracy
±8ml (National Standard)
Chain space
171.4mm
Conveyor height
1200-1400mm
Size
4265×2700×2450mm
Weight
5000kg
Can diameter
45-70mm
Can height
80-175mm
Power
8.26KW
Compressed air
0.5Nm3h(0.6MPa)
Company Profile

1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process
technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven
experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are
designed with one motto in mind: ensure you to reach business goals with most optimized planning.

Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide

Office & Factory & Workshop
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 6
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 7
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 8
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 9
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 10
Any more questions, pls feel free to contact me !

2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 11
3.Certifications
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 12
4.Service
Automatic Aluminum Can Filling Machine Electronic Measuring Cup Soda Can Production Line 13

Spare Parts / Maintenance, Installation & Commissioning / Training

No matter whether you're a newcomer or a sectoral expert – we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging,utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.

Any more questions, pls feel free to contact me !
