5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH

5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: CGF4-4-1-1
Minimum Order Quantity: 1 Set
Price: USD 25000 per Set
Packaging Details: wood case & carton packaging
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now
Condition: New Machinery Capacity: 400BPH, 500BPH, 300BPH
Packaging Type: Bottles Automatic Grade: Automatic
Voltage: 400V 3Phase 50HZ,Customized Brand Name: Sunswell
Weight: 1200 KG Key Selling Points: High-accuracy
Filling Accuracy: 99% Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing
Type: Filling Machine Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Application: Beverage Packaging Material: Plastic
Driven Type: Electric Dimension(L*W*H): 4500*1150*1850mm
Warranty: 1 Year Filling Material: Water
Warranty Of Core Components: 1 Year
Highlight:

5L Pure Water Filling Equipment

,

Water Bottle Filling and Sealing Machine

,

Water Bottle Filling Machine 300BPH

Products Description
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 0

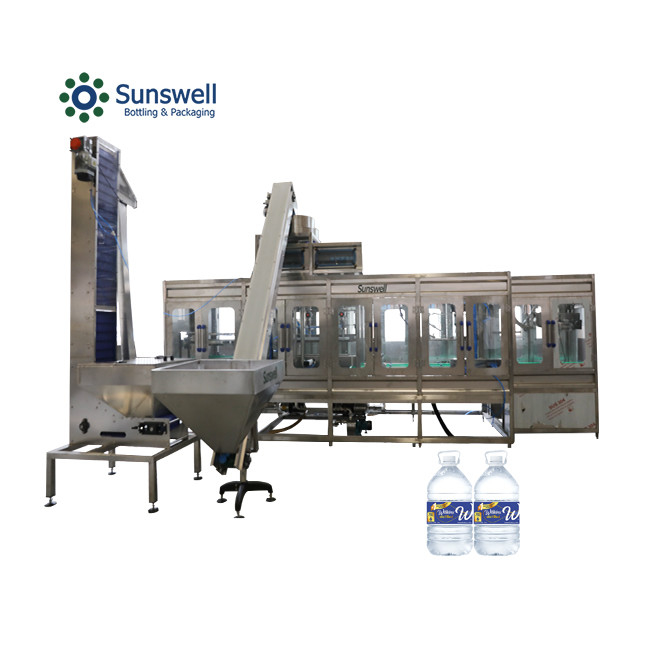

Linear 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main Features
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 1
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 2

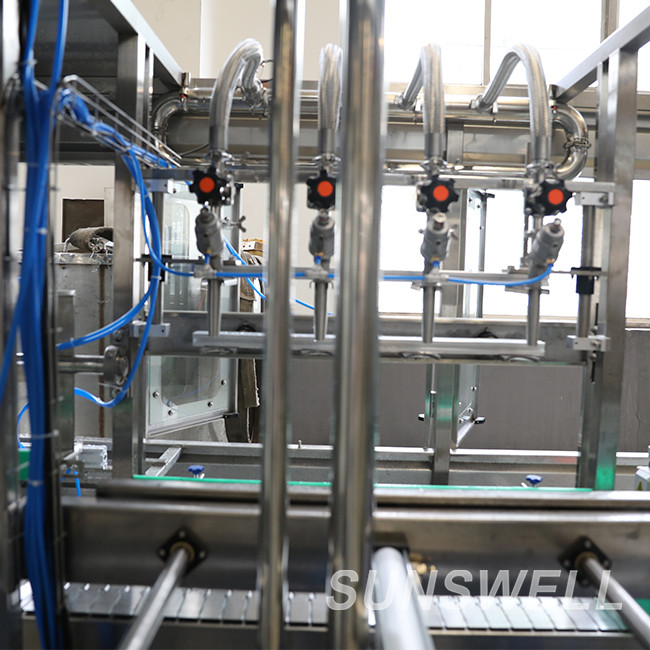

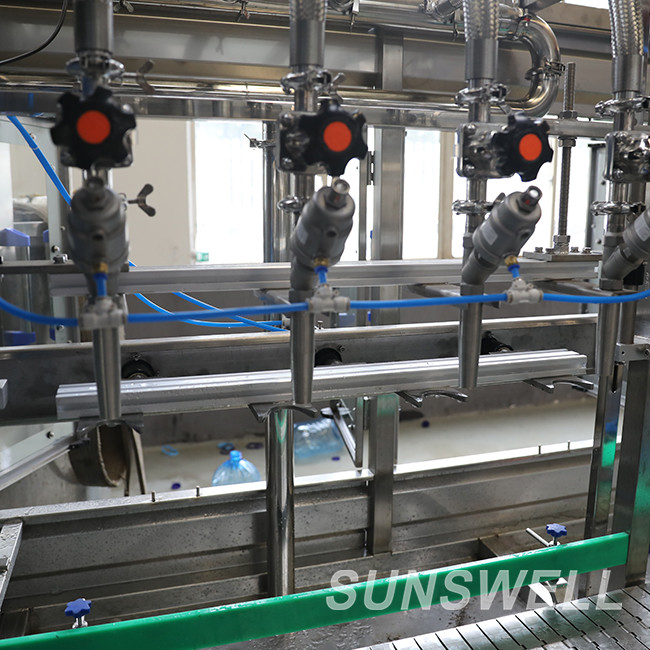

Filler

1.The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
2.The filling valve material is SUS304.
3.The filling system has liquid level automatic control.
4.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
5.Bottle is conveying by the wheel in the filling part.
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 3
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 4

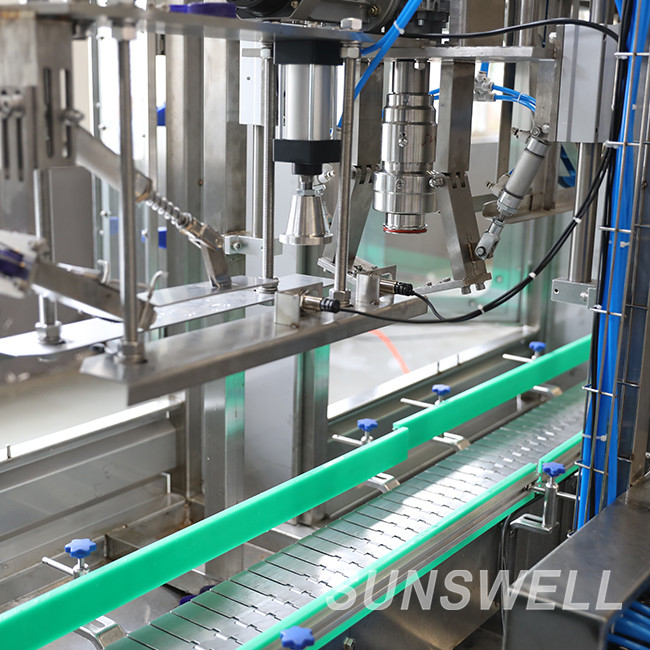

Capper

1.Sunswell import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2.In the screw capping part. it installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop
automatically
Technical Parameters
Model: CGF4-4-1-1
Number of working positions: rinser 4, filler 4, capper 1+1
Rated capacity
Max 500BPH@12L
Air supply pressure
0.6-0.8 MPa
Rinsing water pressure
0.2-0.25 MPa
Way of filling
Pressure filling
Installed power
3 KW
Dimension
4500×1150×1850mm (L×W×H)
Machine weight
1200Kg
Company Profile
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 5
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 6
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 7
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 8
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 9
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 10
Maldives
Water Production Line Combiblock
(330/500/1500ml)
USA
Carbonated Water Filling Line
20000BPH
Syria
Carbonated Drink Filling Line
24 000 Cans Per Hour

Any more questions, please feel free to contact us !
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 11
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 12

Any more questions, please feel free to contact us !




Related Products

1. Complete Bottling Lines: Bottling, Labeling, Packaging & Processing
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 13
1) Water Treatment System
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 14
2) Bolw Molding Machine
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 15
3) Filling Machine
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 16
4) Labelling Machine
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 17
5) Packaging System
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 18
Blowing-filling-capping CombiBlock

2. Various liquid packaging
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 19

3. Different packaging forms
5L Pure Water Filling Equipment 10L 15L 400V 3Phase 50HZ 300BPH 20

Any more questions, pls feel free to contact me !
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
